FN2080-12-06

Overview

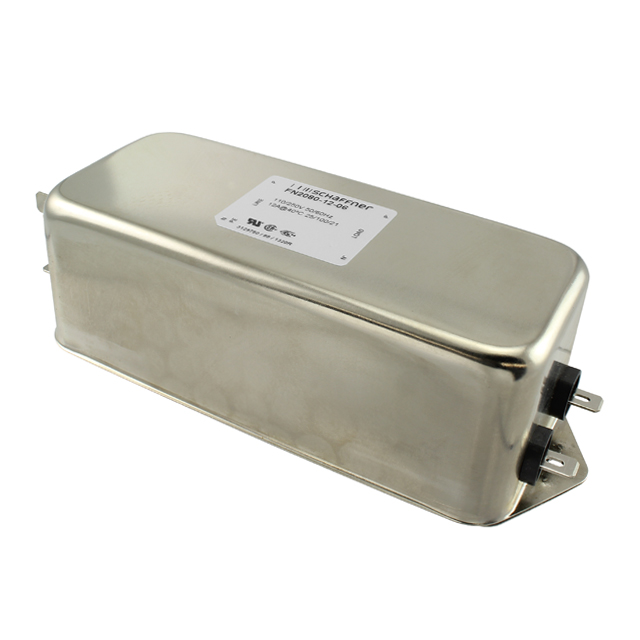

The Schaffner FN2080-12-06 is a multi-stage EMI power line filter designed for chassis mounting. It supports a rated current of 12A and operates at voltages up to 250V AC/DC with a frequency of 400Hz. The unit features two filtering stages and utilizes quick-connect terminals for electrical connection. Key internal parameters include a capacitance value of 4.7nF, an inductance of 2.8mH, and a leakage current of 0.734mA. The device functions within a temperature range of -25°C to 100°C and has physical dimensions of 85.5mm length, 57.6mm height, and 119mm depth.

Feature Summary

• Multi-stage architecture providing high-performance electromagnetic interference suppression
• Chassis mounting design suitable for integration into industrial enclosures
• Quick-connect terminal configuration for simplified wiring installation

Applications

• Higher power office equipment EMC compliance
• Low to medium power industrial applications
• AC/DC power line filtering in electronic systems

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the 12A current rating and 250V voltage specifications align with your operational parameters. Confirm the chassis mounting style and quick-connect terminal type match your assembly needs before procurement.

Selection Notes

Select this component when designing systems requiring robust EMI filtration for single-phase power lines. Consider the 12A current capacity and 400Hz frequency operation as primary constraints. Evaluate the physical dimensions and chassis mounting requirements to ensure adequate space within the target enclosure. Verify thermal management capabilities given the operating temperature range.

Part Context

This component belongs to the FN2080 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose EMI suppression in commercial and industrial environments. The model designation indicates specific electrical ratings and terminal configurations within this product family.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and form factor to ensure functional equivalence.
