FN2080-12-07

Overview

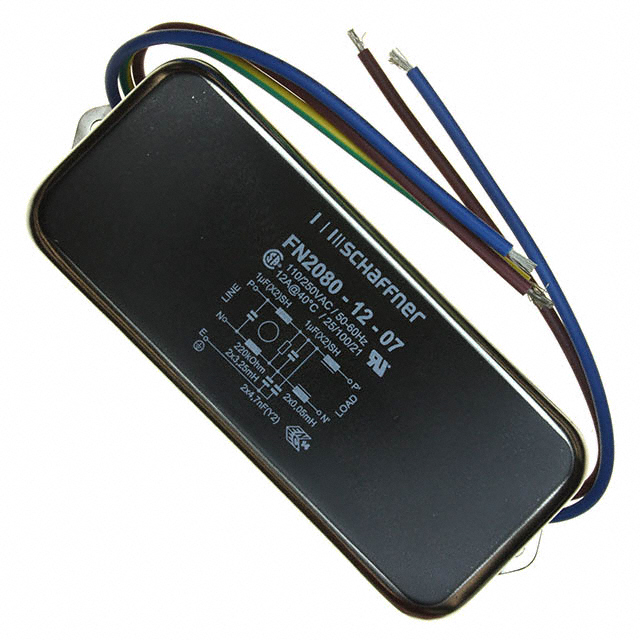

The Schaffner EMC Inc. FN2080-12-07 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a current rating of 12 A and operates within an AC voltage range of 110V to 250V. The component functions effectively across a frequency spectrum from DC to 400Hz. It features a two-stage configuration and utilizes wire leads for termination.

Feature Summary

• Single-phase EMC/EMI filtering capability
• Chassis mount installation type
• Two-stage filter configuration
• Wire lead termination style

Applications

• Office equipment EMC compliance
• Low to medium power industrial applications

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity Schaffner documentation to confirm technical specifications. Ensure compatibility with system voltage, current requirements, and mounting constraints before procurement. Cross-reference datasheets for accurate electrical parameters and certification details.

Selection Notes

Select this model for applications requiring single-phase filtering in low to medium power industrial settings or office equipment. Consider the chassis mount form factor and wire lead termination when designing the enclosure layout. Verify that the operating frequency range up to 400Hz meets the system's noise suppression needs.

Part Context

This component belongs to the FN2080 series of single-phase filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. These filters are engineered for chassis mounting to provide effective electromagnetic interference suppression in various electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers were not identified in the provided source material. Consult official manufacturer documentation for potential cross-references or alternative models within the same product family.
