FN2080-12-08

Overview

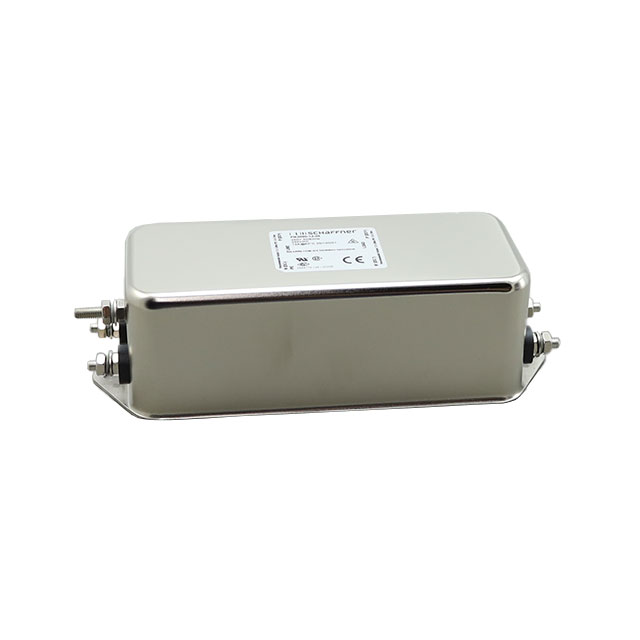

The Schaffner FN2080-12-08 is a single-phase power line filter designed for chassis mounting. It features threaded stud input and output terminations, supporting a current rating of 12 A at voltages up to 250 VAC. The component operates within a frequency range of DC to 400 Hz and maintains a functional temperature range from -25°C to +100°C.

Feature Summary

• Provides electromagnetic interference mitigation through single-phase filtering architecture
• Utilizes threaded stud connections for secure mechanical and electrical integration
• Engineered for robust performance in industrial environments with wide thermal tolerance

Applications

• Industrial machinery power supply conditioning
• Medical equipment noise suppression
• General purpose EMC compliance in electronic systems

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm termination style and voltage ratings. Ensure compatibility with chassis mounting requirements and verify that the threaded stud dimensions match the installation interface. Confirm operational frequency ranges align with system specifications before procurement.

Selection Notes

Select this model for applications requiring single-phase filtering with high mechanical stability via threaded studs. Consider the 12 A current capacity and 250 VAC rating for appropriate load matching. Evaluate the operating temperature range to ensure suitability for the intended environmental conditions.

Part Context

This component belongs to the FN2080 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its versatility in handling various AC/DC frequencies and its robust construction suitable for demanding industrial and commercial applications.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure any replacement matches the single-phase configuration, 12 A rating, and threaded stud termination style.
