FN2080-16-06

Overview

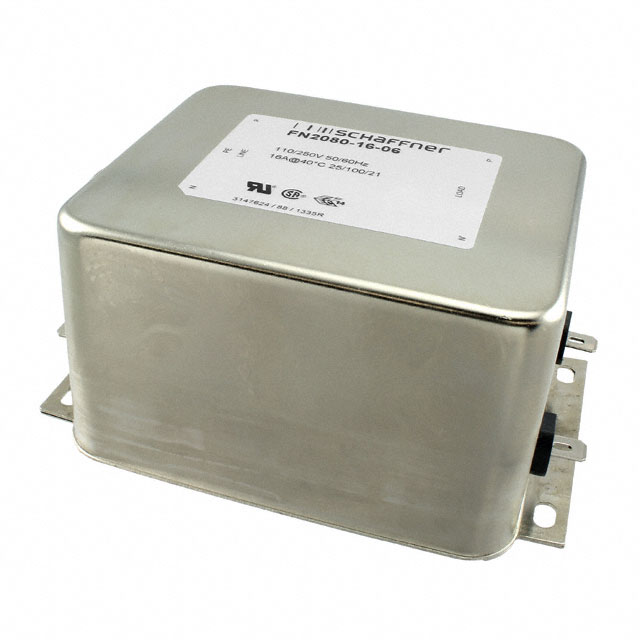

The Schaffner FN2080-16-06 is a single-phase, two-stage EMI/EMC power line filter designed for chassis mounting. It supports an AC voltage rating of 110V or 250VAC and handles a continuous current of 16A. The component operates within a frequency range of DC to 400Hz. It features faston terminal connections and maintains a leakage current of 660 µA. Certified by UL, CSA, and IEC/EN standards, the unit measures 98.5 mm in length, 57.6 mm in height, and weighs approximately 750 g.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with faston termination style
• Compliant with major international safety certifications

Applications

• Industrial machinery power supply protection
• Medical equipment electromagnetic compatibility
• Information technology hardware filtering

Procurement Notes

Verify the specific part number against official TE Connectivity/Schaffner documentation to confirm terminal type and current ratings. Ensure the application environment matches the specified operating temperature range and voltage requirements. Cross-reference certification marks such as UL and CSA with local regulatory needs before integration.

Selection Notes

Select this model when a single-phase solution requires 16A capacity with low leakage current constraints. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the chassis mounting footprint and faston connector pitch align with the system board layout and enclosure space limitations.

Part Context

This component belongs to the FN2080 series, which provides high-performance EMI filtering for single-phase applications. The series is engineered for robust operation in demanding industrial and commercial environments, offering reliable noise suppression while maintaining compliance with global safety standards.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific two-stage topology or faston terminal configuration required for proper system integration.
