FN2080-16-07

Overview

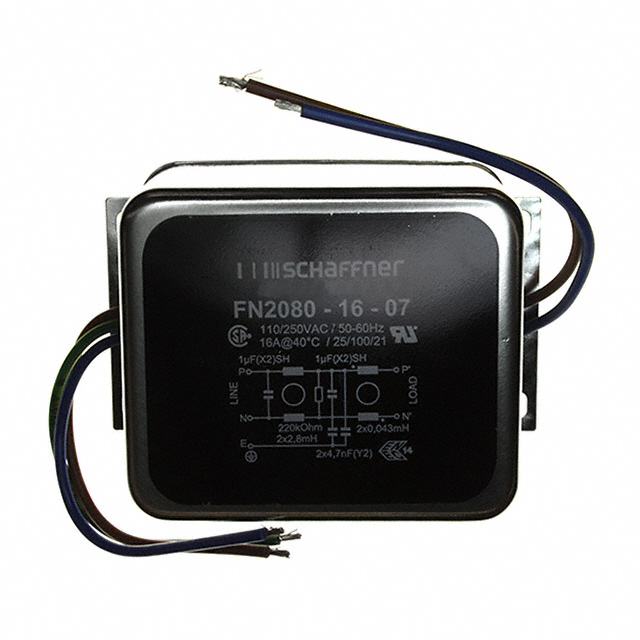

The FN2080-16-07 is a single-phase, two-stage power line filter manufactured by TE Connectivity Schaffner. It features a chassis mount design with wire leads for connection. The unit is rated for 16 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Physical dimensions are 98.5 mm in length, 84.5 mm in width, and 57.6 mm in height, weighing 1.02 kg. It supports an operating temperature range from -25°C to +100°C and has a leakage current of 660 uA. Certifications include UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture designed for high-performance electromagnetic interference suppression
• Chassis mounting configuration with integrated wire leads for direct circuit integration
• Compliance with major international safety and regulatory standards including UL, CSA, and IEC/EN

Applications

• Industrial machinery requiring robust EMI/RFI noise reduction
• Medical equipment demanding strict compliance with electrical safety regulations
• Test and measurement instruments needing clean power supply integrity

Procurement Notes

Verify the specific manufacturer part number FN2080-16-07 against official TE Connectivity Schaffner documentation to ensure authenticity. Confirm that the wire lead termination style matches your system requirements. Check for updated certification marks such as UKCA if applicable to your region. Ensure the chassis mount hole pattern aligns with your enclosure specifications before finalizing procurement.

Selection Notes

Select this component when a single-phase, two-stage filter is required for currents up to 16 A. The chassis mount style with wire leads suits applications where panel penetration is not desired or where direct wiring is preferred over terminal blocks. Consider the physical dimensions and weight for enclosure space planning. Verify that the 250 VAC rating meets the local mains voltage requirements of the deployment environment.

Part Context

This component belongs to the FN2080 series of power line filters from Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose EMC/EMI suppression in AC power lines. The FN2080-16-07 specifically denotes the 16 Ampere variant within this lineup, offering a balance between filtration performance and physical footprint for industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
