FN2080-16-08

Overview

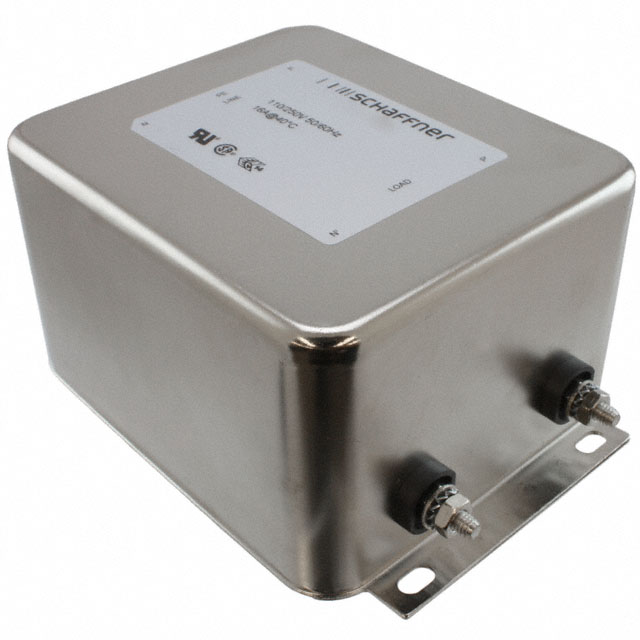

The Schaffner FN2080-16-08 is a single-phase, two-stage power line EMI filter designed for chassis mounting. It features screw terminals and supports a maximum current of 16 A at 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and has a leakage current of 660 µA. Physical dimensions are 98.5 mm in length and 57.6 mm in height. It complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Multi-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with screw terminal connections for secure installation
• Compliance with major international safety and EMC standards

Applications

• Industrial equipment power input stages
• Medical device power supplies
• Information technology hardware

Procurement Notes

Verify the specific suffix '08' against official datasheets to confirm terminal type and mechanical footprint. Ensure the application voltage does not exceed 250 VAC and current remains within the 16 A rating. Confirm that chassis mounting space accommodates the specified dimensions. Cross-reference compliance requirements such as UL or IEC with the manufacturer's certification documentation before finalizing procurement.

Selection Notes

Select this component when single-phase noise reduction is required for systems operating up to 16 A. The two-stage design offers higher attenuation compared to single-stage alternatives. Verify that the 660 µA leakage current is acceptable for the specific safety ground requirements of the end equipment. Ensure the operating temperature range aligns with the system environment.

Part Context

This model belongs to the FN2080 series, which provides general-purpose EMI filtering solutions. The series is characterized by robust construction suitable for industrial environments. TE Connectivity Schaffner manufactures these filters to meet stringent global regulatory requirements for electromagnetic compatibility in power line applications.

Replacement Considerations

Consult official substitution guides for verified equivalents. Generic cross-references may differ in leakage current or physical dimensions.
