FN2080-3-06

Overview

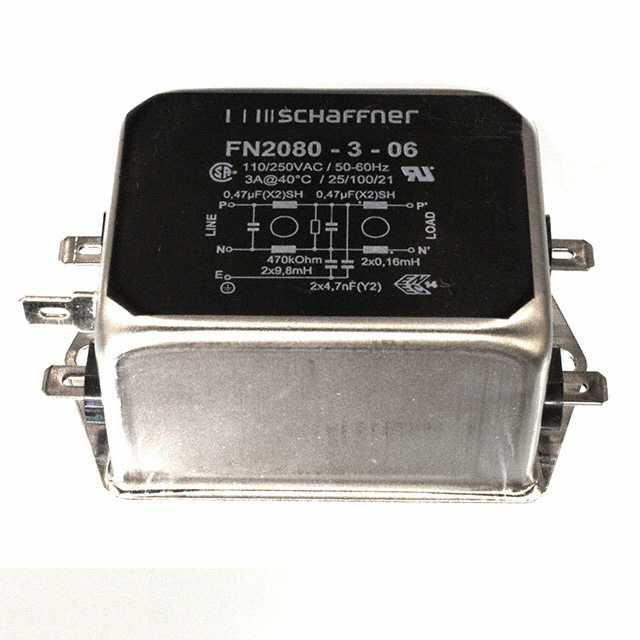

The Schaffner FN2080-3-06 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 3 A. The component operates within a frequency range of 0 Hz to 400 Hz and has a maximum operating temperature of +100°C with a minimum of -25°C. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 40.3 mm in height. It utilizes Faston terminals for connection and exhibits a leakage current of 660 uA.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure installation
• Faston terminal configuration for straightforward wiring

Applications

• Industrial equipment power conditioning
• Sensitive electronic circuit protection
• Power supply input filtering

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to confirm electrical ratings and physical specifications. Ensure compatibility with existing chassis mounting hardware and terminal types before integration into the final assembly design.

Selection Notes

Select this component when a compact, single-phase solution is required for low-current applications up to 3 A. Consider the 250 VAC rating and Faston termination style to ensure alignment with system voltage levels and PCB or wire harness interface requirements.

Part Context

This model belongs to the FN2080 series of AC/DC chassis filters manufactured by TE Connectivity under the Schaffner brand. The series is engineered for general-purpose EMC compliance in power line applications requiring robust noise suppression in a small form factor.

Replacement Considerations

Consult official datasheets for cross-reference information regarding equivalent models from the same manufacturer family or alternative suppliers offering similar single-phase, 3 A, 250 VAC specifications.
