FN2080-3-07

Overview

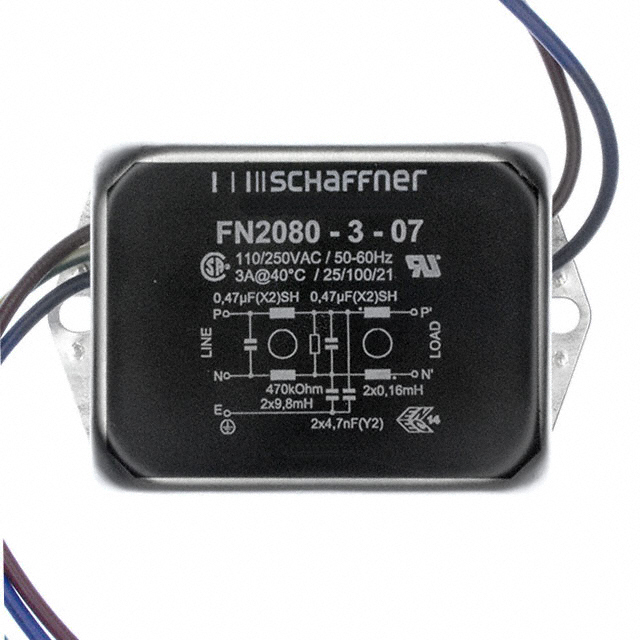

The Schaffner FN2080-3-07 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a rated current of 3 A and a voltage rating of 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and has a maximum leakage current of 660 uA. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 40.3 mm in height, with a weight of 270 g. It utilizes wire leads for termination and complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Low leakage current design suitable for sensitive equipment
• Chassis mount construction for secure installation

Applications

• Industrial equipment power conditioning
• Power supply input filtering
• HMI and display peripheral protection

Procurement Notes

Verify the specific termination type against system requirements, as datasheets may list wire leads or Faston options for similar model variants. Confirm compliance certifications such as UL and CSA are required for the target market. Ensure the chassis mounting hole pattern matches the enclosure design before finalizing procurement.

Selection Notes

Select this component when a compact, single-phase solution is needed for low-current applications up to 3 A. The two-stage design provides superior attenuation compared to single-stage filters. Verify that the 250 VAC rating aligns with the system voltage and that the 660 uA leakage current meets safety limits for the connected load.

Part Context

This part belongs to the FN2080 series by TE Connectivity / Schaffner, which offers various configurations for power line filtering. The series includes models with different current ratings and termination styles, such as screw terminals or wire leads, catering to diverse industrial EMC requirements.

Replacement Considerations

FN2080-3-06 is a verified substitute within the same series, offering identical electrical ratings but utilizing Faston terminations instead of wire leads. Ensure mechanical fitment and connection compatibility are validated before substitution.
