FN2080-6-06

$43.91

Description：LINE FILTER 110V/250VAC 6A CHASS
Series：FN 2080
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:8c91117f07c7 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 110V/250VAC 6A CHASS
Series：FN 2080
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：110V, 250V
Current：6:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：7.8mH

Download product information

FN2080-6-06

Overview

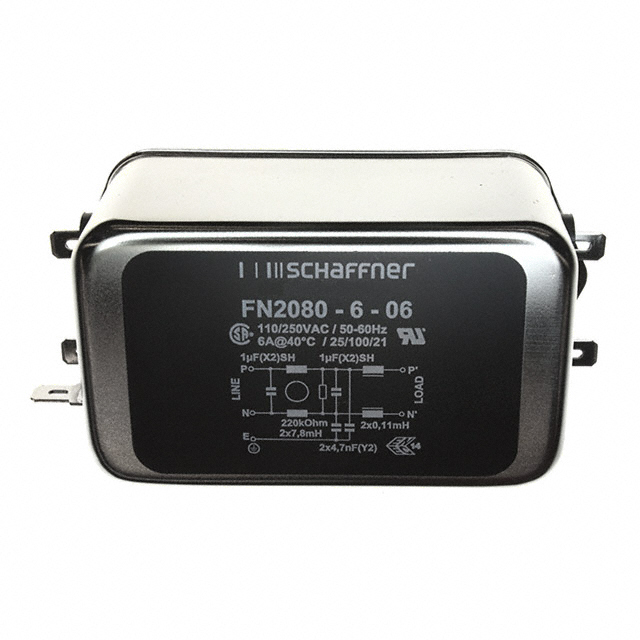

The Schaffner FN2080-6-06 is a single-phase EMI line filter designed for chassis mounting. It supports a maximum current of 6 A and operates at voltages up to 250 V AC/DC within a frequency range of DC to 400 Hz. The unit utilizes a two-stage configuration with quick-connect terminals for circuit attachment. Key electrical parameters include an inductance of 7.8 mH, a capacitance value of 4.7 nF, and a leakage current of 0.734 mA. It functions reliably between -25°C and 100°C, with physical dimensions measuring 85.5 mm in length, 57.6 mm in height, and 119 mm in depth.

Feature Summary

Two-stage filtering architecture for enhanced electromagnetic interference suppression
Chassis mounting design for secure installation in equipment enclosures
Quick-connect terminal style for rapid circuit integration

Applications

General purpose power line filtering
Safety applications requiring certified EMC protection

Procurement Notes

Verify the specific manufacturer designation, as TE Connectivity acquired Schaffner. Confirm that the ordering suffix corresponds exactly to the required voltage and current ratings. Ensure compatibility with the quick-connect terminal specifications before procurement. Cross-reference certification requirements such as CSA, ENEC, or UR against the target application standards.

Selection Notes

Select this component when a single-phase filter rated for 6 A is required for systems operating up to 400 Hz. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the chassis mounting footprint and quick-connect terminal pitch match the existing board or panel layout constraints.

Part Context

This component belongs to the FN2080 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides robust EMI suppression solutions for various industrial and commercial applications. The FN2080-6-06 variant specifically addresses single-phase power line noise reduction needs.
