Product Detailed Parameters
- Description：LINE FILTER 110V/250VAC 6A CHASS
- Series：FN 2080
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：110V, 250V
- Current：6:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：7.8mH
Download product information
Overview

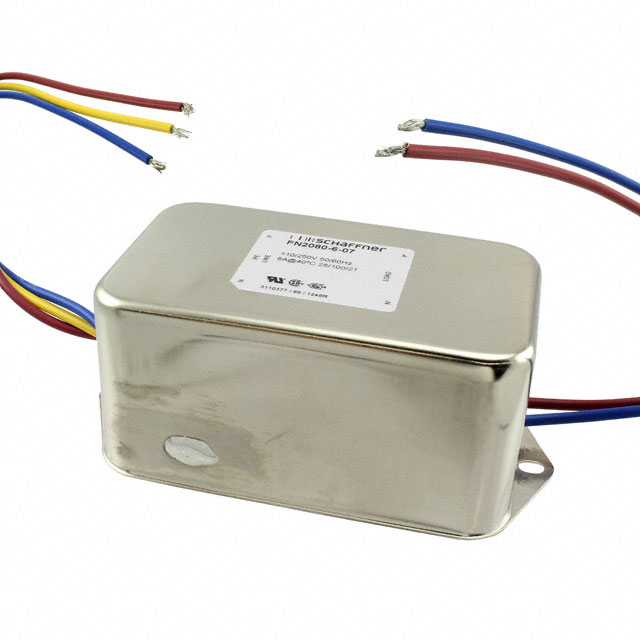

The Schaffner FN2080-6-07 is a single-phase, two-stage EMI power line filter designed for chassis mounting. It supports a rated voltage of 110V or 250V AC and handles a maximum current of 6A. The component operates within a frequency range of DC to 400Hz and functions reliably between -25°C and +100°C. It utilizes wire lead termination for circuit integration.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Chassis mount design for secure installation
- Wire lead termination for direct wiring
Applications
- Industrial equipment EMC compliance
- Power supply input filtering
- Electronic device noise reduction
Procurement Notes
Verify the specific datasheet version for the FN2080-6-07 to confirm exact electrical parameters and mechanical dimensions. Ensure the supplier provides official TE Connectivity / Schaffner documentation to validate authenticity and compliance with safety standards such as UL and CSA before finalizing procurement.
Selection Notes
Select this model when a single-phase filter with 6A capacity is required for systems operating up to 400Hz. The wire lead configuration suits applications requiring direct soldering or crimping rather than terminal blocks. Confirm that the chassis mounting style aligns with the available panel space and thermal management requirements of the target enclosure.
Part Context
This component belongs to the FN2080 series of AC/DC chassis filters manufactured by TE Connectivity / Schaffner. The series is engineered for general-purpose EMI suppression in various electronic applications. The part number indicates a single-phase variant with a 6A rating and wire leads, distinguishing it from other series members with different current capacities or termination styles.
Replacement Considerations
FN2080-6-06 offers identical electrical specifications but uses Faston terminals instead of wire leads. Verify that the existing wiring harness accommodates the terminal type change. No other direct substitutes are confirmed in the provided data.
