FN2080B-1-06

Overview

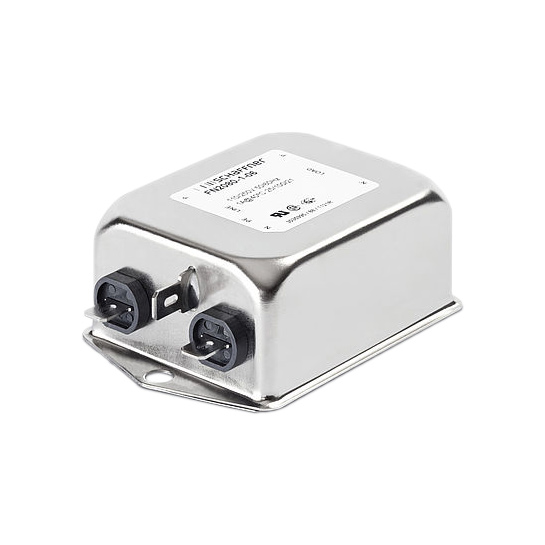

The Schaffner FN2080B-1-06 is a single-phase, two-stage EMI/RFI power line filter designed for chassis mounting. It features a rated current of 1 A and a voltage rating of 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and utilizes Faston terminals for electrical connection. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height. It supports an operating temperature range from -25 °C to +100 °C with zero leakage current.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure installation
• Faston terminal configuration for simplified wiring

Applications

• Medical equipment power supply protection
• General purpose electronic device EMC compliance
• Single-phase AC/DC power line interference suppression

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm terminal type and certification status. Ensure the application environment remains within the specified -25 °C to +100 °C operating temperature range. Confirm that the 1 A current rating meets the load requirements without exceeding thermal limits during continuous operation.

Selection Notes

Select this component when a compact, single-phase solution is required for low-current applications. The two-stage design offers superior performance compared to single-stage alternatives. Verify that the Faston terminal style matches the available connector options in the target assembly. Consider the chassis mounting requirement for mechanical integration.

Part Context

This component belongs to the FN2080 series of high-performance AC/DC filters by TE Connectivity / Schaffner. The series provides robust EMI/RFI suppression for sensitive electronics. The FN2080B variant specifically denotes the medical-grade or general-purpose configuration with defined terminal styles. It serves as a critical interface for ensuring electromagnetic compatibility in regulated environments.

Replacement Considerations

Publicly confirmed substitute part numbers for FN2080B-1-06 were not identified in the provided source material.
