Product Detailed Parameters
- Description：LINE FLTR 1200VDC 100A CHASS MNT
- Series：FN 2200
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：1200V (1.2kV)
- Voltage - Rated AC：-
- Current：100 A
- Frequency - Operating：-
- Applications：Photovoltaic Inverter
- Approval Agency：cURus, ENEC
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
Download product information
Overview

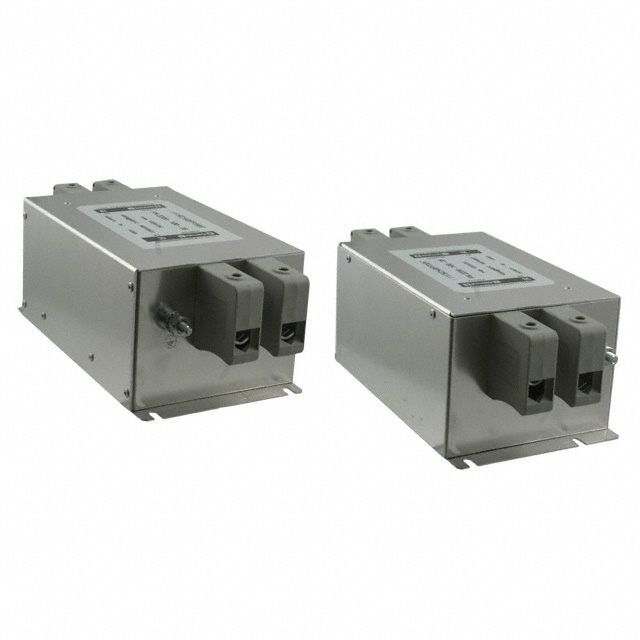

The FN2200-100-35 is a high-performance DC EMC/RFI filter from the Schaffner FN2200 series, designed specifically for photovoltaic inverters. It features a current rating of 100 A and an operating voltage of 1200 VDC. The component utilizes terminal block input and output termination types. It is recognized as a compact dedicated DC filter within the global photovoltaic industry, engineered to control conducted electromagnetic interference.
Feature Summary
- Compact design optimized for PV inverter applications
- High-performance EMI/RFI filtering capabilities
- Dedicated DC filter construction
Applications
- Photovoltaic inverters
- DC power line filtering
- Renewable energy systems
Procurement Notes
Verify the exact part number FN2200-100-35 against official Schaffner or TE Connectivity documentation to confirm specifications. Ensure compatibility with 1200 VDC systems and 100 A current requirements. Check for authorized distribution channels to guarantee authenticity. Confirm terminal block termination details match system interface needs before procurement.
Selection Notes
Select this component for applications requiring dedicated DC filtering in photovoltaic environments. Consider the 100 A current rating and 1200 VDC voltage limit during system design. Evaluate space constraints due to its compact form factor. Ensure thermal management aligns with the filter's operational characteristics in enclosed inverter assemblies.
Part Context
This component belongs to the Schaffner FN2200 series, which provides specialized DC filters for the photovoltaic industry. The series is noted for its compact size and high performance in controlling conducted emissions. It serves as a critical element in maintaining signal integrity and regulatory compliance in solar power generation equipment.
FAQ
What is the maximum operating voltage for the FN2200-100-35?
The maximum operating voltage is 1200 VDC.
What type of termination does this filter use?
It uses terminal block termination for both input and output connections.
