FN2200-1000-99

Overview

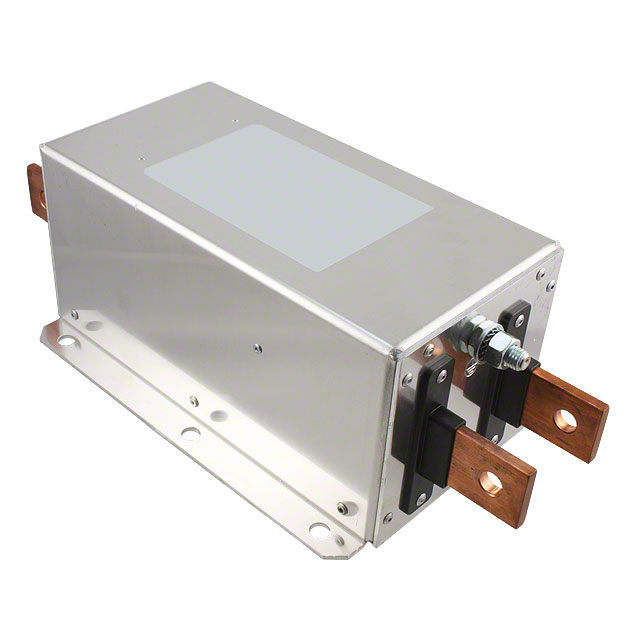

The FN2200-1000-99 is a DC power line filter from the Schaffner FN2200 series, designed for high-current photovoltaic applications. It features a rated voltage of 1.2 kVDC and a current rating of 1 kA. The unit utilizes chassis mounting with busbar termination. Physical dimensions are 300 mm in length, 150 mm in width, and 140 mm in height, weighing 9.4 kg. It operates within a temperature range of -25°C to +100°C.

Feature Summary

• Engineered specifically for global photovoltaic inverter systems based on custom filter design experience.
• Provides EMI/EMC filtering capabilities for direct current circuits.
• Constructed for robust chassis mounting using busbar connections.

Applications

• Photovoltaic (PV) inverters
• High-power DC power supplies
• Industrial battery charging systems

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing busbar interfaces and chassis mounting points. Confirm that the operating temperature range meets the environmental requirements of the installation site. Cross-reference manufacturer datasheets for any recent product changes or obsolescence notices before finalizing procurement.

Selection Notes

Select this component when designing systems requiring high-voltage DC filtering up to 1.2 kVDC and currents around 1 kA. Consider the physical footprint and weight constraints due to its large chassis-mount form factor. Evaluate the need for busbar termination versus other connection methods. Ensure the thermal management strategy supports operation at temperatures up to +100°C.

Part Context

This model belongs to the FN2200 series, which specializes in DC filters for renewable energy applications. The series leverages specialized design expertise for solar inverters. Other variants in the series offer different current ratings while maintaining similar voltage specifications and mounting styles.

Replacement Considerations

Check for updated part numbers within the FN2200 series. Verify if alternative Schaffner models offer equivalent current handling with different physical dimensions. Confirm that any substitute maintains the same busbar interface and voltage rating.
