FN2200-1500-99

Overview

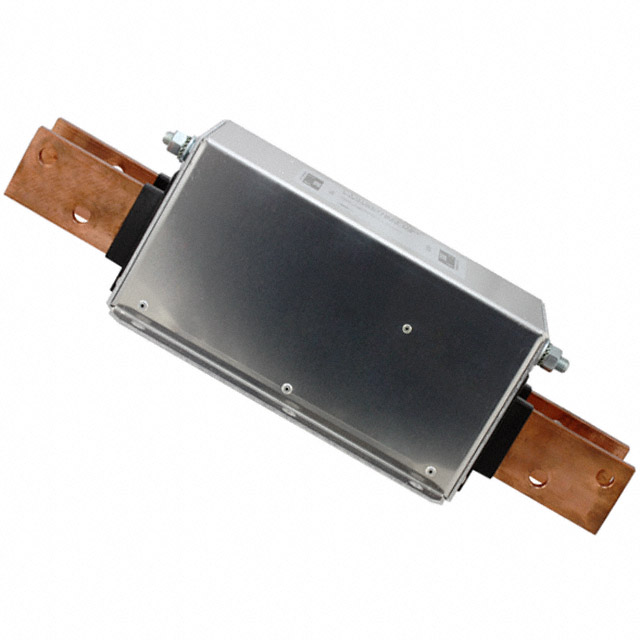

The Schaffner FN2200-1500-99 is a DC EMC/EMI line filter designed for chassis mounting. It features a single-stage configuration with terminal post termination. The component is rated for a maximum current of 1.5 kA and operates at a voltage of 1200 VDC. It supports a frequency range from DC to 400 Hz and functions within an operating temperature range of -40°C to 100°C.

Feature Summary

• Provides protection against high-frequency stray and leakage currents in photovoltaic systems.
• Helps prevent premature aging in PV modules by filtering electromagnetic interference.
• Designed to assist entire PV systems in meeting regulatory compliance standards.

Applications

• Photovoltaic (PV) solar panel systems
• Solar inverters
• DC power distribution units

Procurement Notes

Verify the specific terminal post configuration and physical dimensions against the official datasheet before integration. Confirm that the 1.5 kA current rating aligns with the system's peak load requirements. Ensure the chassis mounting style matches the enclosure design. Check for any recent product change notices regarding packaging or material composition updates.

Selection Notes

Select this model for high-current DC applications requiring robust EMI suppression. The single-stage design offers a compact solution for space-constrained installations. Verify compatibility with the system's voltage level, which must not exceed 1200 VDC. Consider the thermal management capabilities given the wide operating temperature range up to 100°C.

Part Context

This component belongs to the FN2200 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is specialized for renewable energy applications, particularly solar power generation. These filters are engineered to handle high currents while maintaining effective noise reduction for sensitive electronic equipment in harsh environments.

Replacement Considerations

Public confirmed substitute part numbers: None identified in source data.
