FN2200-25-33

Overview

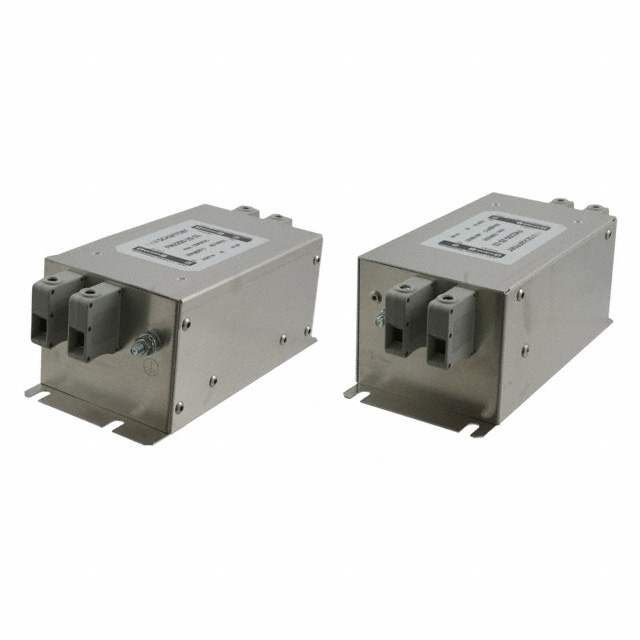

The Schaffner FN2200-25-33 is a DC EMC/EMI line filter rated for 1200V DC and 25A. It features a single-stage configuration with terminal block termination and chassis mount installation. The component operates within a temperature range of -40°C to 100°C and holds cURus and ENEC certifications.

Feature Summary

• Unsymbmetrical housing design prevents inverse installation and wrong electrical connection
• Single-stage filtering configuration for DC applications
• Terminal block termination style

Applications

• PV Inverters

Procurement Notes

Verify the specific datasheet version for the FN2200 series to confirm current certification status and mechanical dimensions. Ensure the input voltage does not exceed the 1200V DC rating. Confirm that the terminal block type matches the system wiring requirements before finalizing procurement.

Selection Notes

Select this component for high-voltage DC systems requiring robust EMI suppression. The unsymmetrical housing aids in correct physical orientation during assembly. Verify that the 25A current rating aligns with the maximum load current of the target application circuit.

Part Context

This part belongs to the FN2200 series, which provides standard EMC/EMI filtering solutions. The series utilizes unsymmetrical housings to ensure proper installation polarity. It is designed for industrial and renewable energy applications where reliable DC power conditioning is required.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
