FN2200-50-34

Overview

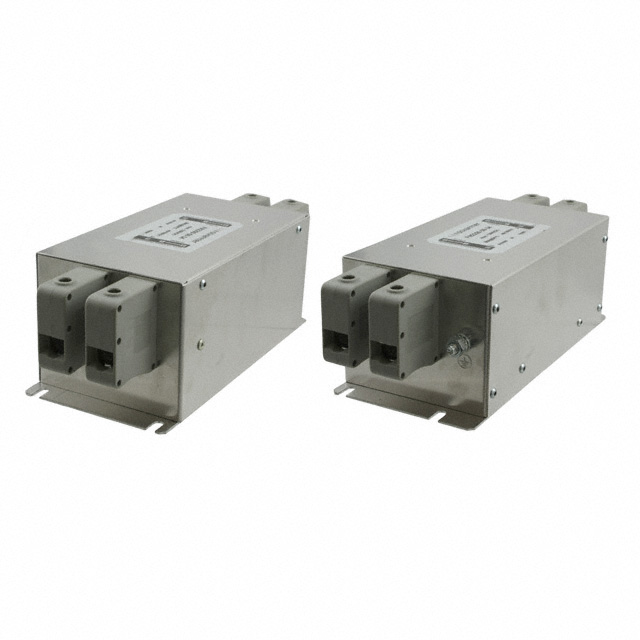

The Schaffner FN2200-50-34 is a single-phase EMI/EMC power line filter designed for high-voltage DC applications. It features a voltage rating of 1.2 kVDC and a current rating of 50 A. The unit utilizes chassis mount installation with terminal block termination. Operating within a temperature range of -40°C to +100°C, it measures 170 mm in length and 80 mm in height. The component holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Engineered for high-voltage DC environments with robust 1.2 kVDC insulation capabilities
• Provides effective electromagnetic interference suppression for single-phase circuits
• Constructed for durable chassis mounting using secure terminal block connections

Applications

• Industrial power conditioning systems requiring high DC voltage isolation
• Chassis-mounted EMC filtering for heavy-duty electrical equipment
• High-current DC power distribution networks

Procurement Notes

Verify the specific datasheet version for the FN2200-50-34 to confirm terminal block specifications and mounting hole dimensions prior to integration. Ensure that the operating environment remains within the stated -40°C to +100°C range to maintain certification validity. Cross-reference the 1.2 kVDC rating against system peak voltages to prevent dielectric breakdown during procurement validation.

Selection Notes

Select this component when a single-phase filter is required for DC systems operating up to 1.2 kVDC. The 50 A current capacity suits high-power industrial loads. Chassis mounting with terminal blocks is preferred over PCB or DIN rail options for heavy-duty structural integration. Verify that the physical dimensions of 170 mm by 80 mm fit the available enclosure space.

Part Context

This model belongs to the FN2200 series from TE Connectivity / Schaffner, specialized for demanding power line filtering tasks. The series is recognized for handling significant current loads while maintaining strict EMC standards. The FN2200-50-34 specifically addresses high-voltage DC requirements, distinguishing it from standard AC-only filters in the broader product portfolio.

Replacement Considerations

Consult official Schaffner documentation for direct cross-references. No public substitute part numbers are confirmed in the provided source material.
