FN2200-600-99

Overview

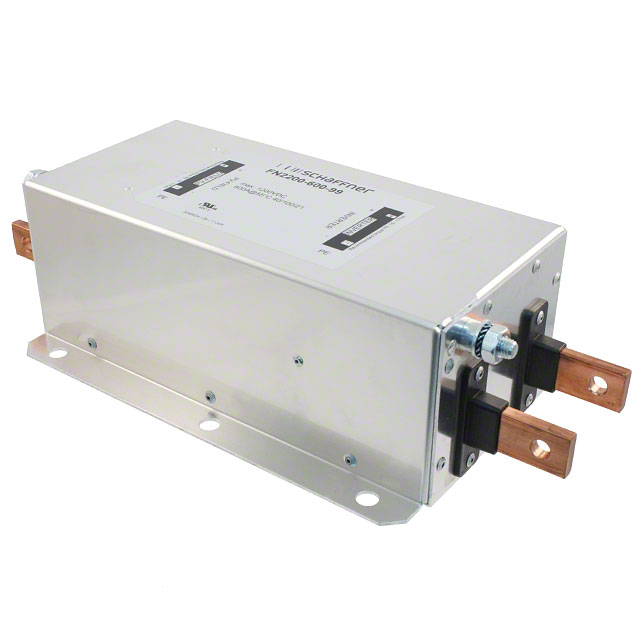

The Schaffner FN2200-600-99 is a single-stage DC EMC/EMI line filter designed for photovoltaic inverters. It supports a rated current of 600 A and a maximum voltage of 1200 V (1.2 kV). The component utilizes terminal post termination and chassis mounting. It operates within a frequency range of DC to 400 Hz. The filter is certified by CSA, ENEC, and UR agencies. It complies with RoHS3 standards and has a moisture sensitivity level of 1.

Feature Summary

• Compact design optimized for PV inverter applications
• Single-stage filtering configuration
• Unsymmetrical circuit topology

Applications

• Photovoltaic inverters
• DC power line filtering
• EMC/EMI suppression in renewable energy systems

Procurement Notes

Verify the specific part number FN2200-600-99 against official TE Connectivity Schaffner documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with system voltage and current requirements. Check for recent product change notifications regarding packaging or material composition. Confirm certification status matches local regulatory needs.

Selection Notes

Select this model for high-current DC applications requiring compact form factors. The 600 A rating suits large-scale inverter designs. Terminal post termination facilitates robust connections. Consider the unsymmetrical nature for specific circuit topologies. Verify thermal management requirements for continuous operation at rated load.

Part Context

Part of the FN2200 series, marketed as the most compact dedicated DC filters for PV inverters in the global photovoltaic industry. Manufactured by TE Connectivity Schaffner. Designed specifically for standard EMC/EMI filtering tasks in renewable energy generation equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult manufacturer documentation for direct replacements.
