FN2200-75-34

Overview

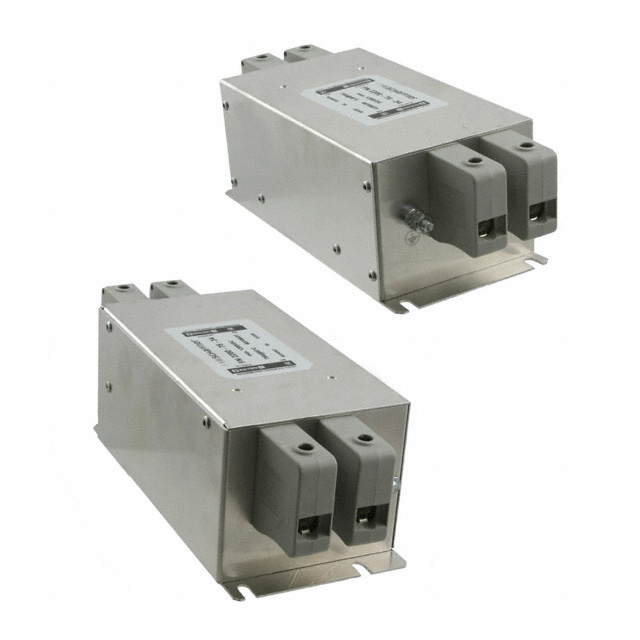

The FN2200-75-34 is a single-phase DC power line filter from the Schaffner FN2200 series, designed for photovoltaic inverters. It features a voltage rating of 1.2 kVDC and a current rating of 75 A. The unit utilizes chassis mount installation with terminal block termination. Physical dimensions include a length of 170 mm and a height of 80 mm. It operates within a temperature range up to +100°C and holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Compact dedicated design optimized for PV inverter applications
• High-voltage DC filtering capability for renewable energy systems
• Chassis mount construction with terminal block connections

Applications

• Photovoltaic (PV) inverters
• DC power conditioning systems
• Conducted emission control in solar energy converters

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm current availability and manufacturing status. Ensure that the 1.2 kVDC and 75A ratings align with your system requirements. Check for any recent product discontinuation notices or alternative component recommendations provided by the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when designing high-voltage DC filtering solutions for photovoltaic inverters requiring compact form factors. The FN2200 series is engineered for minimal space consumption while maintaining effective EMI/EMC suppression. Confirm that the chassis mounting style and terminal block interface are compatible with your enclosure design and wiring infrastructure.

Part Context

The FN2200 series represents Schaffner's specialized line of DC filters tailored for the global photovoltaic industry. These components address the specific conducted emission challenges associated with solar power conversion. The series emphasizes compactness and performance, enabling efficient integration into modern inverter architectures where space constraints are critical.

Replacement Considerations

Consult official TE Connectivity / Schaffner substitution guides for verified alternatives. No public substitute part numbers are confirmed in the available data.
