Product Detailed Parameters
- Description：LINE FLTR 1200VDC 100A CHASS MNT
- Series：FN 2200
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：1200V (1.2kV)
- Voltage - Rated AC：-
- Current：100 A
- Frequency - Operating：-
- Applications：Photovoltaic Inverter
- Approval Agency：cURus, ENEC
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
Download product information
Overview

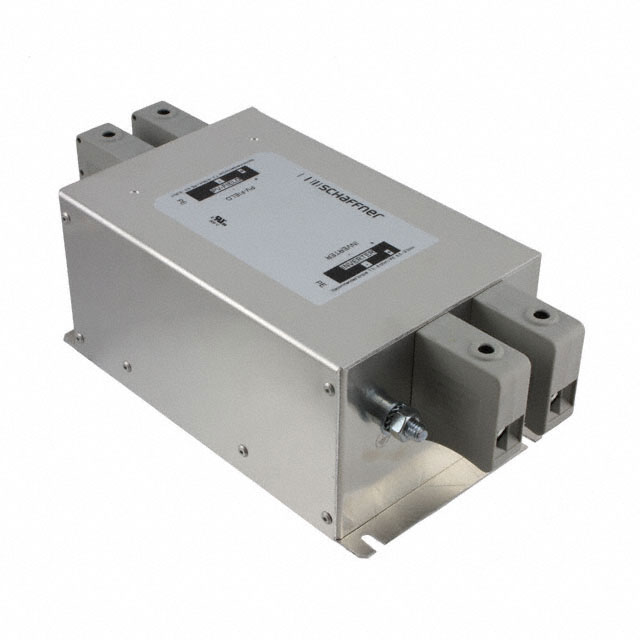

The FN2200B-100-35 is a DC EMC/EMI filter from the FN 2200 series, designed for photovoltaic inverters. It features a rated DC voltage of 1200 V and a current rating of 100 A. The unit utilizes a single-stage configuration with an unsymmetrical design. It is certified under cURus and ENEC standards. The component is classified as a power line filter module intended for chassis mounting.
Feature Summary
- Compact dedicated DC filter architecture optimized for photovoltaic inverter applications
- Standard EMC/EMI filtering performance with unsymmetrical configuration
- Certified compliance with cURus and ENEC safety standards
Applications
- Photovoltaic (PV) inverters
- Industrial control systems
- Automotive systems
Procurement Notes
Verify the specific part number FN2200B-100-35 against official Schaffner documentation to confirm ratings. Ensure compatibility with 1200V DC systems and 100A current requirements. Check for required certifications such as cURus and ENEC for your target market. Confirm chassis mounting specifications before integration.
Selection Notes
Select this model for high-voltage DC applications requiring compact EMC solutions. The 1200V rating suits PV inverters. Verify that the 100A current capacity meets system load demands. Consider the unsymmetrical design implications for circuit layout. Ensure the single-stage filtering meets noise suppression requirements.
Part Context
This component belongs to the FN 2200 series by Schaffner EMC Inc., known for compact DC filters. The series targets photovoltaic inverter markets. The FN2200B-100-35 variant specifies 1200V DC and 100A current handling. It represents a standard EMC/EMI solution within the manufacturer's power line filter portfolio.
Replacement Considerations
Consult official Schaffner documentation for direct substitutes. Cross-reference electrical ratings including 1200V DC and 100A current. Verify physical dimensions and mounting styles match existing designs. Ensure certification requirements remain compatible.
