FN2200B-1000-99

Overview

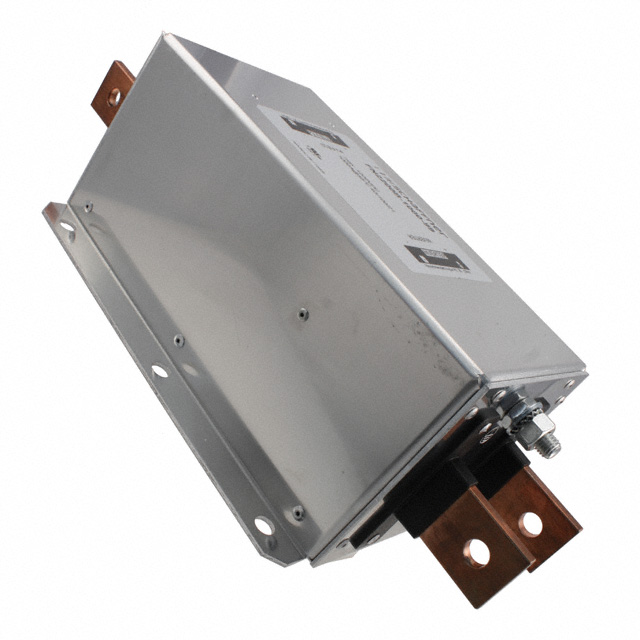

The FN2200B-1000-99 is a DC EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a voltage rating of 1200 VDC and a current rating of 1000 A to 1150 A. The unit utilizes chassis mount installation with terminal post connections. Operating temperatures range from -40°C to +100°C. This single-stage filter is designed for high-power direct current applications.

Feature Summary

• Designed specifically for photovoltaic inverters
• Provides DC EMC/EMI filtering
• Single-stage terminal post construction

Applications

• Photovoltaic inverters
• High-power DC power filtering systems

Procurement Notes

Verify the specific current rating variant (1000A vs 1150A) against the application requirements, as sources indicate a range. Confirm that the terminal post interface matches the system busbar or cable configuration. Ensure the chassis mount dimensions fit the enclosure design. Check RoHS3 compliance status if required by regional regulations.

Selection Notes

Select this component when high-current DC filtering is required for renewable energy systems. The 1200V rating suits standard PV string voltages. Consider the physical size and weight due to the high current capacity. Ensure the operating temperature range covers the environmental conditions of the installation site.

Part Context

This part belongs to the FN2200B series of DC filters from Schaffner. It is distinct from AC filters like the FN3359 series. The model number indicates its position in the product line for high-current DC applications, differentiating it from lower current variants such as the FN2200-100-35.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's datasheet for cross-reference information before substituting.
