FN2200B-150-40

Overview

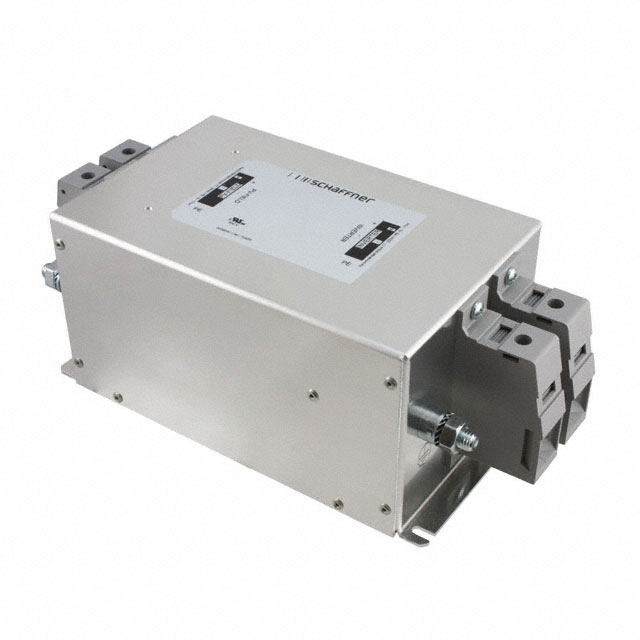

The Schaffner FN2200B-150-40 is a single-stage DC EMC/EMI line filter module designed for chassis mounting. It supports a rated current of 150 A and operates at a voltage of 1.2 kV DC (1200 V). The component functions within the frequency range of DC to 400 Hz. It utilizes terminal block termination for electrical connections. This filter is part of the FN 2200 series, which provides compact electromagnetic interference suppression solutions.

Feature Summary

• Compact design optimized for photovoltaic inverter applications
• Single-stage filtering configuration for efficient EMI suppression
• Chassis mount installation type for secure integration

Applications

• Photovoltaic inverters
• DC power systems requiring EMC compliance
• Industrial equipment with high-voltage DC inputs

Procurement Notes

Verify that the specific model suffix matches the required voltage and current ratings for your application. Confirm that the terminal block interface aligns with your wiring harness specifications. Ensure the chassis mounting dimensions fit within your enclosure constraints before ordering.

Selection Notes

Select this component when a dedicated DC filter for PV inverters is required. Consider the 150 A current rating and 1.2 kV voltage capability as primary selection criteria. Evaluate the compact form factor against available space in the inverter assembly compared to larger filter alternatives.

Part Context

This component belongs to the FN 2200 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is characterized by its compact size and suitability for high-power density applications. It serves as a standard solution for electromagnetic compatibility in renewable energy systems.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Verify compatibility with alternative models through official datasheet comparison if substitution is necessary.
