FN2200B-1500-99

Overview

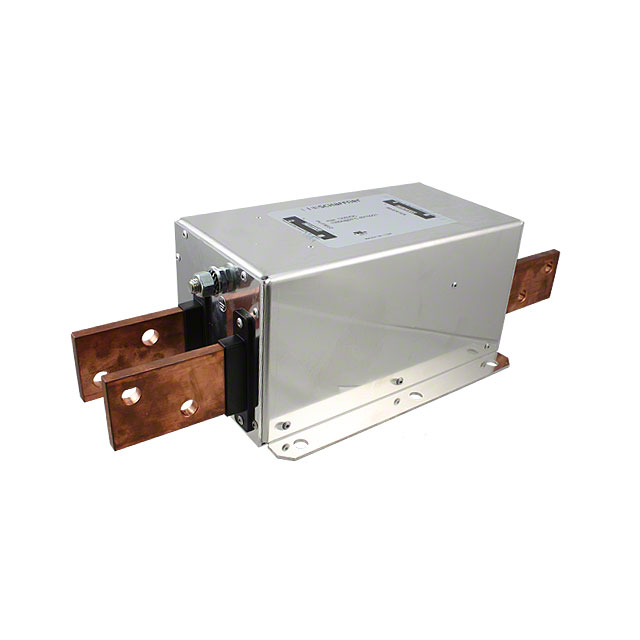

The FN2200B-1500-99 is a DC EMC/EMI line filter module manufactured by TE Connectivity Schaffner. Designed for chassis mounting, this single-phase filter supports a rated voltage of 1200VDC and handles a current capacity of 1500A. It features quick-connect termination styles suitable for high-power applications. The component operates within a temperature range of -25°C to 100°C and complies with RoHS3 standards. Certifications include CSA, ENEC, and UR, ensuring adherence to international safety regulations for industrial power systems.

Feature Summary

• Engineered specifically for photovoltaic inverter EMC/EMI suppression
• High current handling capability for demanding DC power applications
• Robust chassis mount construction for stable installation
• Compliant with major international safety certification bodies

Applications

• Photovoltaic (PV) inverters
• High-power DC power supplies
• Battery charging systems
• Industrial energy-efficient power conversion units

Procurement Notes

Verify the exact voltage and current ratings against your system requirements before ordering. Confirm that the chassis mounting style and quick-connect terminals match your assembly design. Check for specific certification needs such as CSA or ENEC depending on your target market. Ensure compatibility with the operating temperature range of your enclosure. Always refer to the official datasheet for mechanical dimensions and electrical characteristics.

Selection Notes

Select this model when high-current DC filtering is required for renewable energy systems. Compare against other FN2200 series variants if different voltage or current ratings are needed. Consider the physical size constraints for chassis installation. Verify terminal type compatibility with existing wiring harnesses. Evaluate thermal management requirements given the high current capacity.

Part Context

This component belongs to the FN2200 series of AC/DC chassis filters from Schaffner EMC. The series is designed for robust performance in industrial environments. The FN2200B-1500-99 variant specifically targets high-power DC applications, distinguishing itself from lower current models in the same family. It shares common mounting and termination features with other parts in the series.

Replacement Considerations

Public confirmed substitute part numbers: None identified in provided documentation.
