FN2200B-25-33

Overview

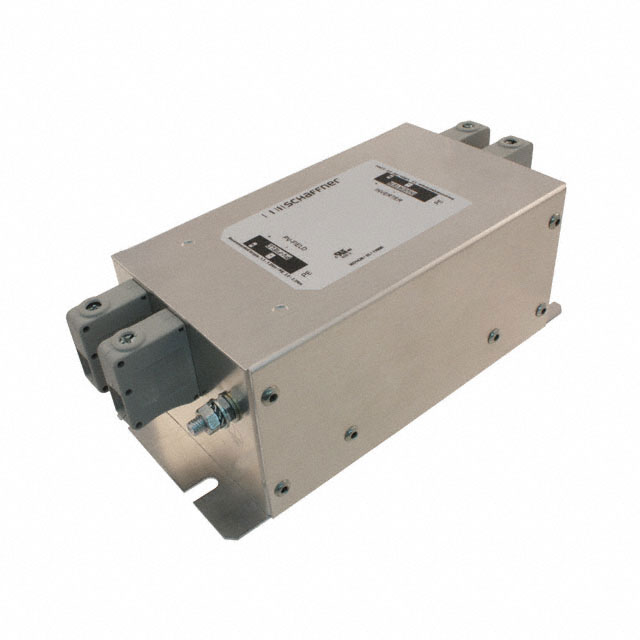

The FN2200B-25-33 is a single-stage DC EMC/EMI power line filter manufactured by TE Connectivity Schaffner. It features a 1200 VDC voltage rating and a 25 A current capacity, designed for chassis mounting with terminal block terminations. The unit operates within a temperature range of -40°C to +100°C and complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Engineered specifically for high-voltage direct current applications in photovoltaic systems
• Provides effective electromagnetic interference suppression through single-stage filtering architecture
• Utilizes robust terminal block connections for secure electrical integration

Applications

• Photovoltaic inverters
• DC power conditioning systems
• Industrial DC power supplies

Procurement Notes

Verify the specific suffix 'B' against official datasheets to confirm exact physical dimensions and pinout compatibility. Ensure the 1200VDC rating aligns with system requirements. Confirm RoHS compliance status via the manufacturer's declaration before finalizing procurement orders.

Selection Notes

Select this component when a single-phase DC filter is required for high-voltage renewable energy applications. Compare thermal performance and leakage current specifications against alternative models in the FN2200 series to ensure optimal fit for the specific enclosure and regulatory environment.

Part Context

This model belongs to the FN2200 series, which specializes in DC filtering solutions. It serves as a specialized variant within the broader Schaffner portfolio, distinct from AC-focused models like the FN351 series. The part is actively supported by TE Connectivity for industrial and renewable energy sectors.

Replacement Considerations

The FN2200-25-33 is listed as an alias or related part number. Verify if the 'B' suffix denotes a specific mechanical or certification variation before substituting.
