FN2200B-250-99

Overview

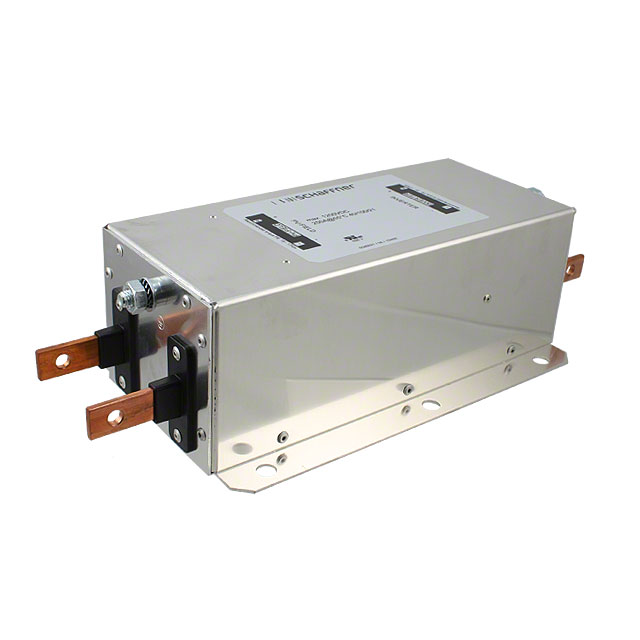

The Schaffner FN2200B-250-99 is a power line DC EMC/EMI filter designed for high-current applications. It supports a rated current of 250A and operates at a maximum voltage of 1200VDC. The unit is intended for use in 100KW systems, providing essential electromagnetic interference suppression for direct current power lines.

Feature Summary

• Engineered for high-power DC power line filtering
• Supports continuous operation at 250A current ratings
• Rated for 1200VDC system voltages

Applications

• Medical DC power systems
• Industrial DC power distribution
• High-power DC equipment EMC suppression

Procurement Notes

Verify the specific suffix 'B' against official Schaffner documentation to confirm exact terminal configuration and mechanical dimensions. Ensure the 1200VDC rating aligns with your system's peak voltage requirements. Confirm that the 250A continuous current capacity meets your load specifications without derating issues.

Selection Notes

Select this component when high-current DC filtering is required for medical or industrial equipment. The 1200VDC rating distinguishes it from lower-voltage AC filters. Ensure chassis mounting provisions are available in the design. Verify compatibility with 100KW system power levels.

Part Context

This part belongs to the Schaffner FN2200 series, which specializes in high-performance DC power line filters. The series is designed for demanding environments requiring robust EMI suppression in direct current circuits. It complements other Schaffner components for complete power integrity solutions.

Replacement Considerations

FN2200-250-99 is listed as a related designation. Verify electrical parameters and mechanical fit before substitution. No other confirmed public substitutes are identified.
