FN2200B-600-99

$794.57

Description：LINE FLTR 1200VDC 600A CHASS MNT
Series：FN 2200
Mfr：Schaffner EMC Inc.
Package：Box

SKU:ec193e2a5d05 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 1200VDC 600A CHASS MNT
Series：FN 2200
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：DC
Configuration：Single Stage
Voltage - Rated DC：1200V (1.2kV)
Voltage - Rated AC：-
Current：600 A
Frequency - Operating：-
Applications：Photovoltaic Inverter
Approval Agency：cURus, ENEC
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-

Download product information

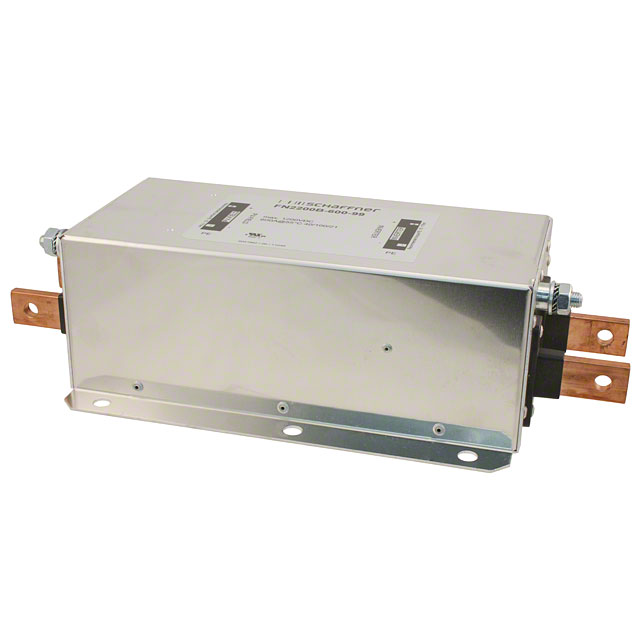

FN2200B-600-99

Overview

The FN2200B-600-99 is a single-stage DC power line filter manufactured by TE Connectivity Schaffner. It is rated for 1200 VDC and supports a continuous current of 600 A. The component utilizes busbar termination for high-current connections and is designed for chassis mounting. Key physical dimensions include a height of 150 mm, length of 340 mm, and width of 180 mm. It operates within a temperature range of -25 °C to +100 °C and holds UL, CSA, and IEC/EN certifications.

Feature Summary

Engineered as a single-stage EMI/EMC filter specifically for direct current applications
Utilizes robust busbar termination to accommodate high-amperage electrical connections
Constructed for secure chassis mounting in industrial environments

Applications

Photovoltaic (PV) inverters
High-power DC power supplies
Industrial motor drives

Procurement Notes

Verify the specific datasheet version before procurement, as manufacturing updates may occur. Confirm that the busbar termination style matches the system interface requirements. Ensure the installation environment allows for adequate thermal management given the high current rating and operating temperature limits specified by the manufacturer.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. The 600 A rating and 1200 VDC capability define its operational envelope. Consider the physical footprint and busbar connection method during mechanical design integration to ensure compatibility with existing chassis structures.

Part Context

This component belongs to the FN2200 series, which focuses on high-performance filtering for demanding DC applications. The 'B' suffix typically denotes specific terminal or housing variations within the series. It serves as a critical component for electromagnetic interference mitigation in systems requiring substantial DC power handling capabilities.
