FN2200B-800-99

Overview

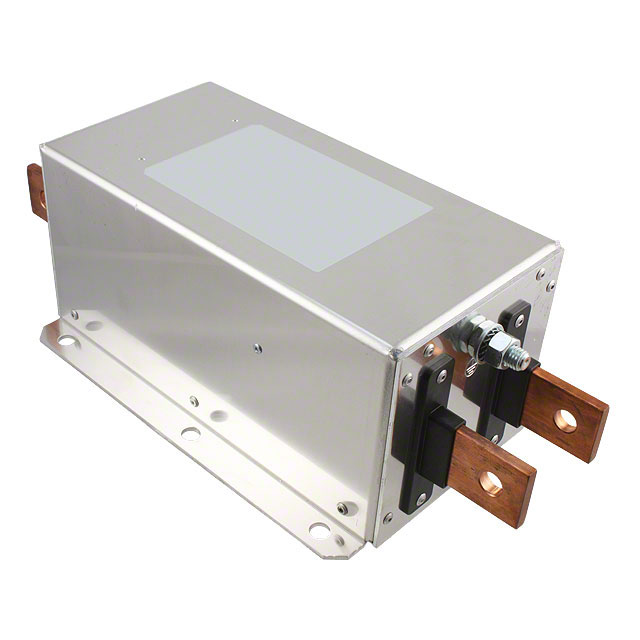

The FN2200B-800-99 is a single-stage DC EMC/EMI line filter manufactured by TE Connectivity Schaffner. It features a voltage rating of 1200 VDC and a current capacity of 800 A. The unit utilizes busbar termination and chassis mount installation. Physical dimensions are 300 mm in length, 150 mm in width, and 140 mm in height, with an operating temperature range of -25°C to +100°C.

Feature Summary

• Designed as a dedicated DC filter for photovoltaic inverters
• Provides electromagnetic interference suppression in a compact form factor
• Constructed for high-current direct current applications

Applications

• Photovoltaic (PV) inverter systems
• High-power DC power conditioning
• Industrial DC power distribution networks

Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure compatibility with system requirements. Confirm that the busbar termination style matches the mechanical interface of the target assembly. Check for any recent product change notices regarding material or dimensional updates before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring robust DC filtering for high-amperage circuits up to 800 A. Ensure the application voltage does not exceed the 1200 VDC rating. Consider the physical footprint and chassis mounting requirements during the mechanical design phase to accommodate the specified dimensions.

Part Context

This model belongs to the FN2200 series, which represents a line of compact filters specifically engineered for renewable energy applications. The series is characterized by its ability to handle significant DC currents while maintaining a small physical profile suitable for space-constrained inverter designs.

Replacement Considerations

Consult official substitution lists for equivalent models within the FN2200 family. Verify that alternative part numbers maintain identical electrical ratings and terminal configurations to ensure seamless integration without redesigning the host equipment.
