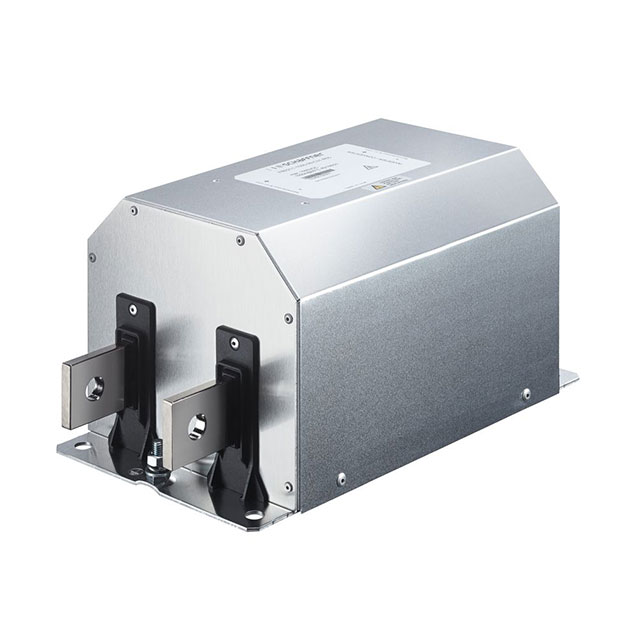

FN2210-1500-99-R5

$939.49

Description：LINE FILTER 1000VDC 1.5KA CHASS
Series：FN 2210
Mfr：Schaffner EMC Inc.
Package：Box

SKU:ea7135ce9a72 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 1000VDC 1.5KA CHASS
Series：FN 2210
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：DC
Configuration：Single Stage
Voltage - Rated DC：1000V (1kV)
Voltage - Rated AC：-
Current：1.5 kA
Frequency - Operating：DC
Applications：Inverters, Power Drive Systems
Approval Agency：CE, cURus
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-

Download product information

FN2210-1500-99-R5

Overview

The FN2210-1500-99-R5 is a DC EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a single-stage design with a current rating of 1.5 kA and a voltage rating of 1000V (1kV) DC. The component utilizes terminal post connections for installation.

Feature Summary

Single-stage filtering architecture
High current capacity handling
Terminal post termination style

Applications

DC power line noise suppression
Industrial equipment EMI mitigation

Procurement Notes

Verify the specific suffix R5 against official datasheets to confirm exact terminal configuration and packaging details. Ensure compatibility with 1000V DC systems and 1.5 kA load requirements before procurement.

Selection Notes

Select this model for applications requiring high-current DC filtering. Confirm that the terminal post interface matches the system busbar or cable assembly specifications.

Part Context

This component belongs to the FN2210 series, designed for DC applications. It serves as an electromagnetic interference suppression device within power distribution networks.
