FN2210HV-400-99-R9

Overview

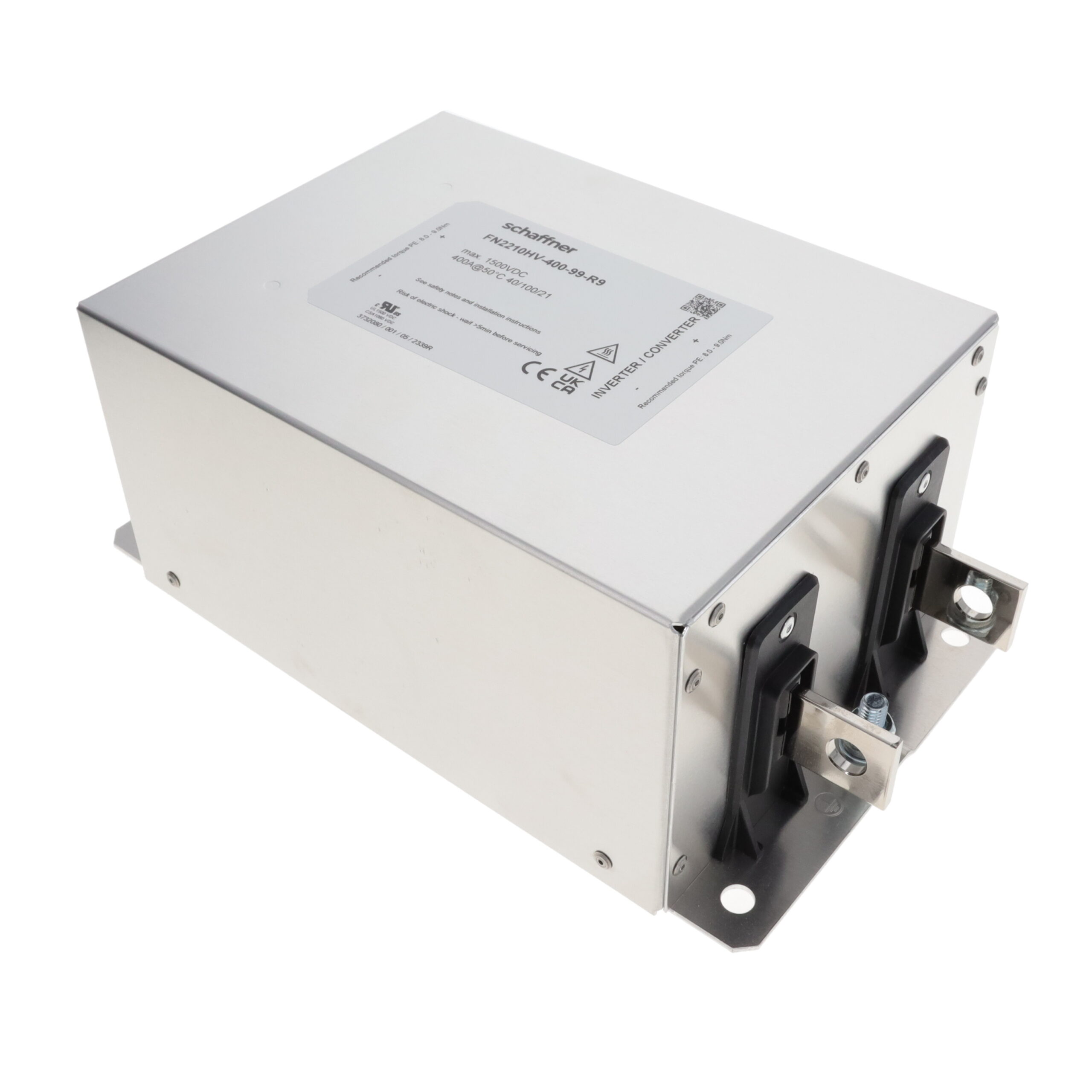

The FN2210HV-400-99-R9 is a DC EMC/EMI line filter manufactured by TE Connectivity Schaffner. It is designed for high-voltage applications with a rated voltage of 1500V (1.5kV) DC and a current capacity of 400 A. The component features a single-stage configuration and utilizes terminal post connections. It belongs to the FN2210HV series, which is engineered for compact high-current power electronics environments.

Feature Summary

• Engineered for high-voltage DC power systems
• Single-stage electromagnetic interference suppression
• Terminal post connection interface

Applications

• Solar energy systems
• High-current power electronics
• DC busbar filtering

Procurement Notes

Verify the complete part number including suffixes such as -R9 against official manufacturer documentation to ensure correct termination style and packaging specifications. Confirm that the 1500V DC rating and 400 A current capacity align with system requirements before procurement.

Selection Notes

Select this component for applications requiring robust DC EMC filtering in high-voltage environments. Ensure the terminal post mounting method fits the mechanical design constraints. Verify compatibility with the specific frequency range of the DC power source to guarantee effective noise attenuation.

Part Context

This model is part of the FN2210HV series from Schaffner, specialized for high-voltage direct current applications. The series is characterized by its ability to handle significant current loads while maintaining electromagnetic compatibility in demanding industrial and renewable energy settings.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
