Product Detailed Parameters
- Description：LINE FLTR 1500VDC 250A CHASS MNT
- Series：FN 2211
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：1500V (1.5kV)
- Voltage - Rated AC：-
- Current：250 A
- Frequency - Operating：DC
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, cURus
- Operating Temperature：0°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
Download product information
Overview

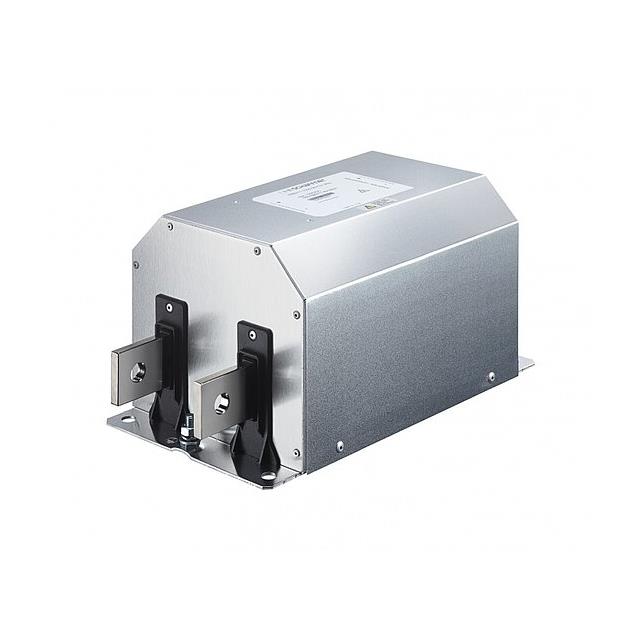

The FN2211HV-250-99-C27-R99 is a compact high-current DC EMC/EMI filter manufactured by Schaffner. It features a rated voltage of 1500 V and a continuous current rating of 250 A. The component utilizes a chassis mount configuration with terminal post termination style. Its operating temperature range spans from -40°C to 100°C. This filter is designed for integration into DC busbar systems, providing essential electromagnetic interference suppression for high-power direct current applications.
Feature Summary
- Compact design optimized for high-current DC environments
- Chassis mount construction with terminal post connections
- Operates within a wide temperature range of -40°C to 100°C
Applications
- EV charging infrastructure
- DC busbar systems
- High-power direct current filtering
Procurement Notes
Verify the specific part number against official Schaffner documentation to ensure compatibility with system voltage and current requirements. Confirm that the chassis mount form factor and terminal post termination align with the physical installation constraints. Validate the operating temperature specifications against the environmental conditions of the intended deployment site to guarantee reliable performance.
Selection Notes
Select this component when a dedicated DC EMC filter is required for high-voltage, high-current applications. Ensure the 1500 V rating and 250 A capacity meet the electrical demands of the circuit. Consider the chassis mount requirement and available space for the terminal post connections during the mechanical design phase.
Part Context
This model belongs to the FN2211HV series of DC EMC/RFI filters. These components are engineered specifically for demanding power electronics applications where significant current handling and robust electromagnetic interference suppression are critical. The series supports various current ratings to accommodate different system scales.
Replacement Considerations
Consult official Schaffner documentation for verified substitute part numbers. Cross-reference technical specifications such as voltage, current, and mounting type before considering alternative models.
