FN2220-150-99-C0000-R90

Overview

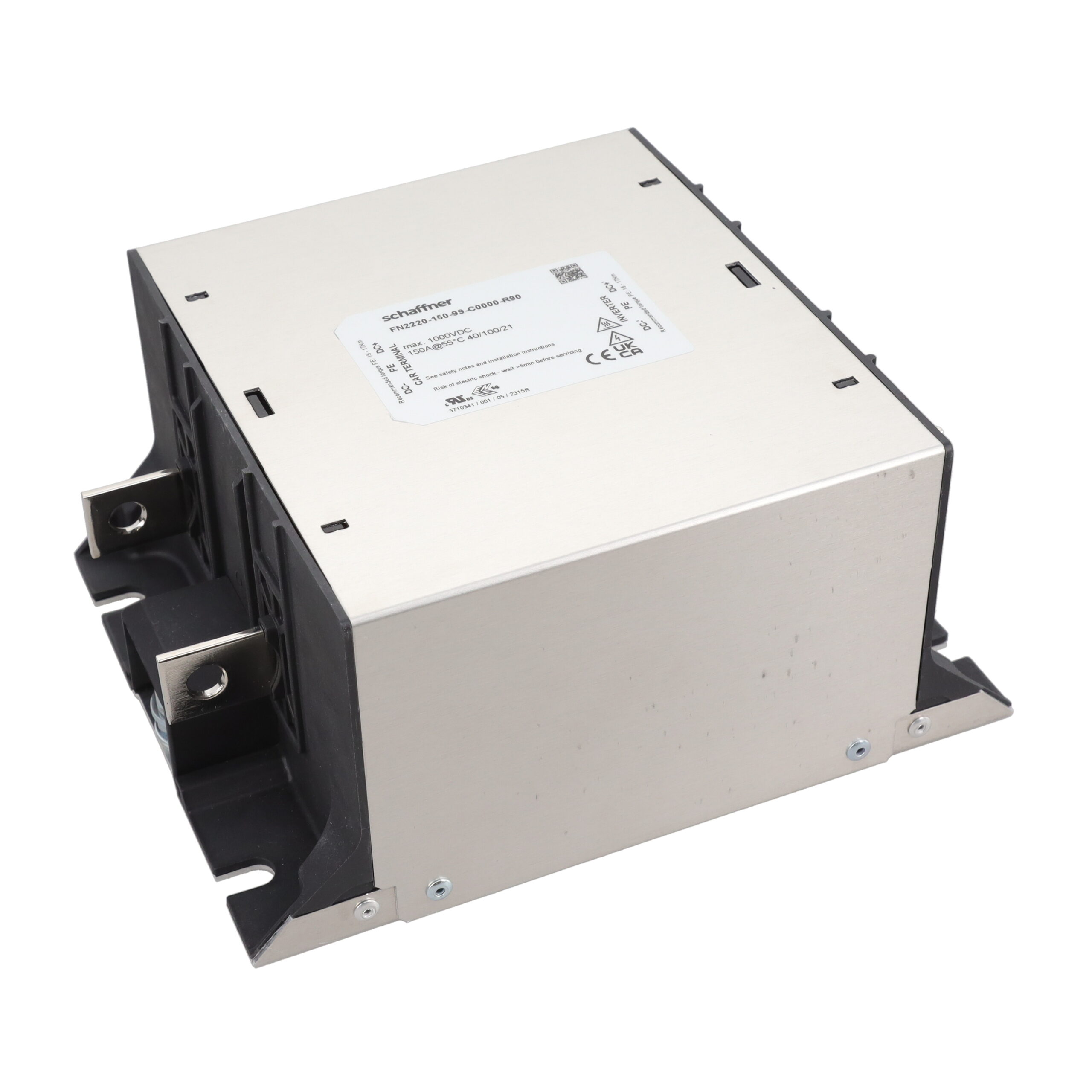

The Schaffner FN2220-150-99-C0000-R90 is a high-current DC EMC/EMI line filter designed for demanding power distribution and drive applications. It features a chassis mount configuration with busbar input and output terminations. The component supports a current rating of 150 A and an operating voltage of 1000 VDC. This ultra-compact filter is engineered to suppress electromagnetic interference in high-power DC systems.

Feature Summary

• Engineered for high-current DC power distribution and drive applications
• Utilizes ultra-compact chassis mount design with busbar connections
• Provides effective electromagnetic interference suppression

Applications

• High-power DC power distribution systems
• Industrial drive applications
• Demanding power electronics environments

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct termination type and electrical ratings. Confirm compatibility with system voltage and current requirements before procurement. Check for updated compliance declarations and environmental data sheets from TE Connectivity / Schaffner to ensure adherence to current regulatory standards.

Selection Notes

Select this component for applications requiring robust EMI filtering in high-voltage DC circuits. Ensure the chassis mounting style and busbar interface align with the mechanical design. Verify that the 150 A current rating and 1000 VDC voltage rating exceed the maximum operational parameters of the target system to ensure reliable performance.

Part Context

This model belongs to the Schaffner FN2220 series, which specializes in ultra-compact DC busbar filters. These components are designed to integrate seamlessly into high-power electronic systems where space constraints and high current handling capabilities are critical design factors.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided source material.
