Product Detailed Parameters
- Description：LINE FLTR 1000VDC 300A CHASS MNT
- Series：FN2220
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

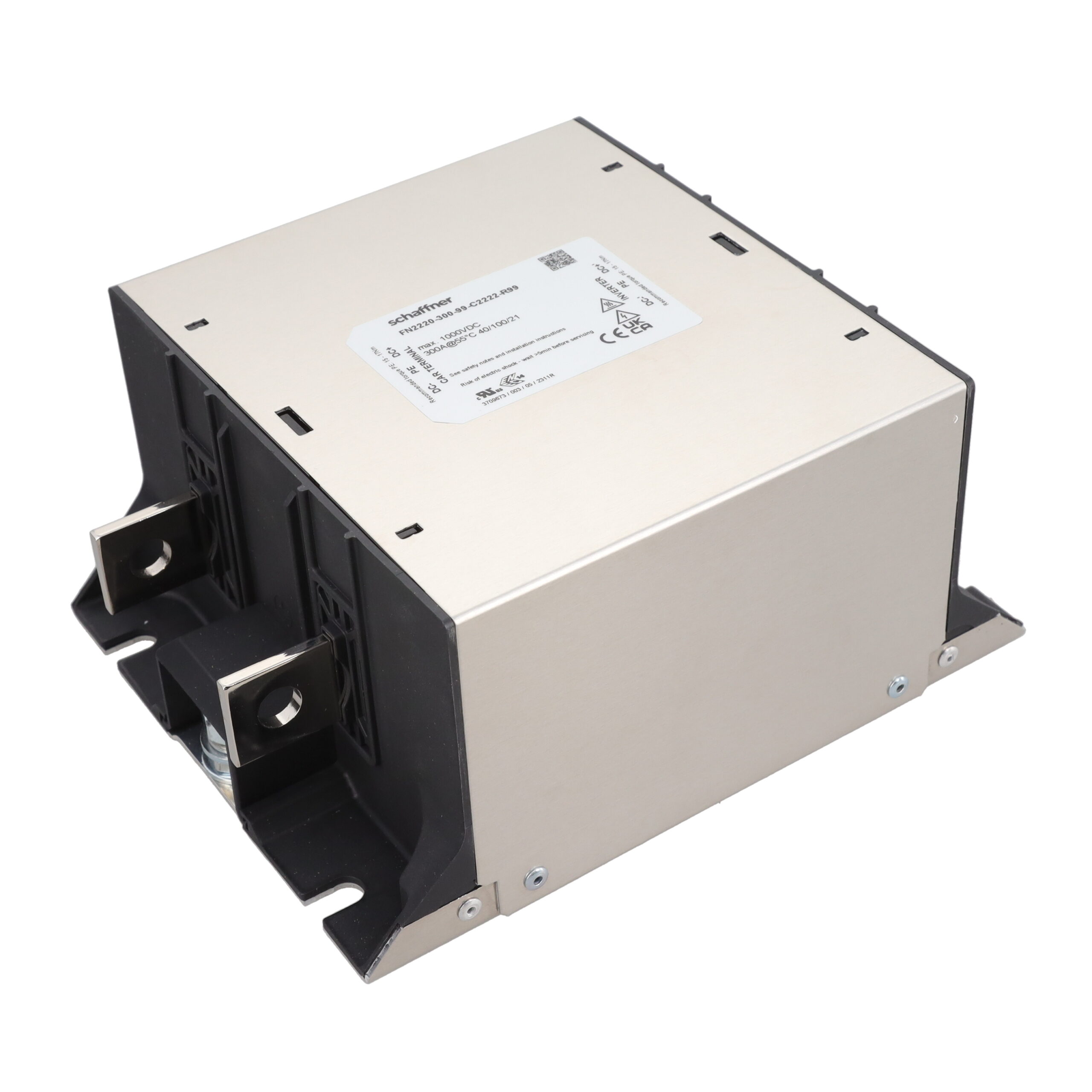

The FN2220-300-99-C2222-R99 is a DC busbar EMC/RFI filter manufactured by Schaffner EMC Inc., part of the TE Connectivity portfolio. Designed for electric vehicle (EV) charging applications, this component features a two-stage configuration and supports a voltage rating of 1 kVDC with a current capacity of 300A. It utilizes chassis mounting and Faston terminals, providing essential electromagnetic interference suppression for high-power DC power lines in automotive and industrial environments.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- Optimized for high-current DC busbar applications
- Chassis mount design for secure mechanical integration
Applications
- Electric vehicle charging infrastructure
- High-power DC power line conditioning
- Industrial EV battery systems
Procurement Notes
Verify the specific suffix codes against the official datasheet to ensure correct terminal type and mounting configuration. Confirm that the 1 kVDC rating aligns with your system's maximum operating voltage. Check for RoHS compliance documentation if required by your supply chain standards. Ensure chassis mounting holes match your enclosure specifications before procurement.
Selection Notes
Select this model when high current handling up to 300A is required alongside strict EMI suppression in DC circuits. The two-stage design offers superior performance compared to single-stage alternatives. Ensure sufficient physical space for chassis mounting and verify terminal accessibility for Faston connections. Consider thermal management requirements given the high current capacity.
Part Context
This component belongs to the FN2220 series, which specializes in DC busbar filters for EV applications. It complements other Schaffner products designed for electric mobility power electronics. The series focuses on compact, high-performance solutions for managing electromagnetic compatibility in direct current systems used in modern electric vehicles and charging stations.
Replacement Considerations
Check for equivalent models within the FN2220 series with different current ratings or voltage tolerances. Verify compatibility with existing chassis mounting patterns and terminal configurations. Consult the manufacturer's cross-reference guide for confirmed substitutes that meet identical electrical and mechanical specifications.
