FN2220-450-99-C0000-R90

Overview

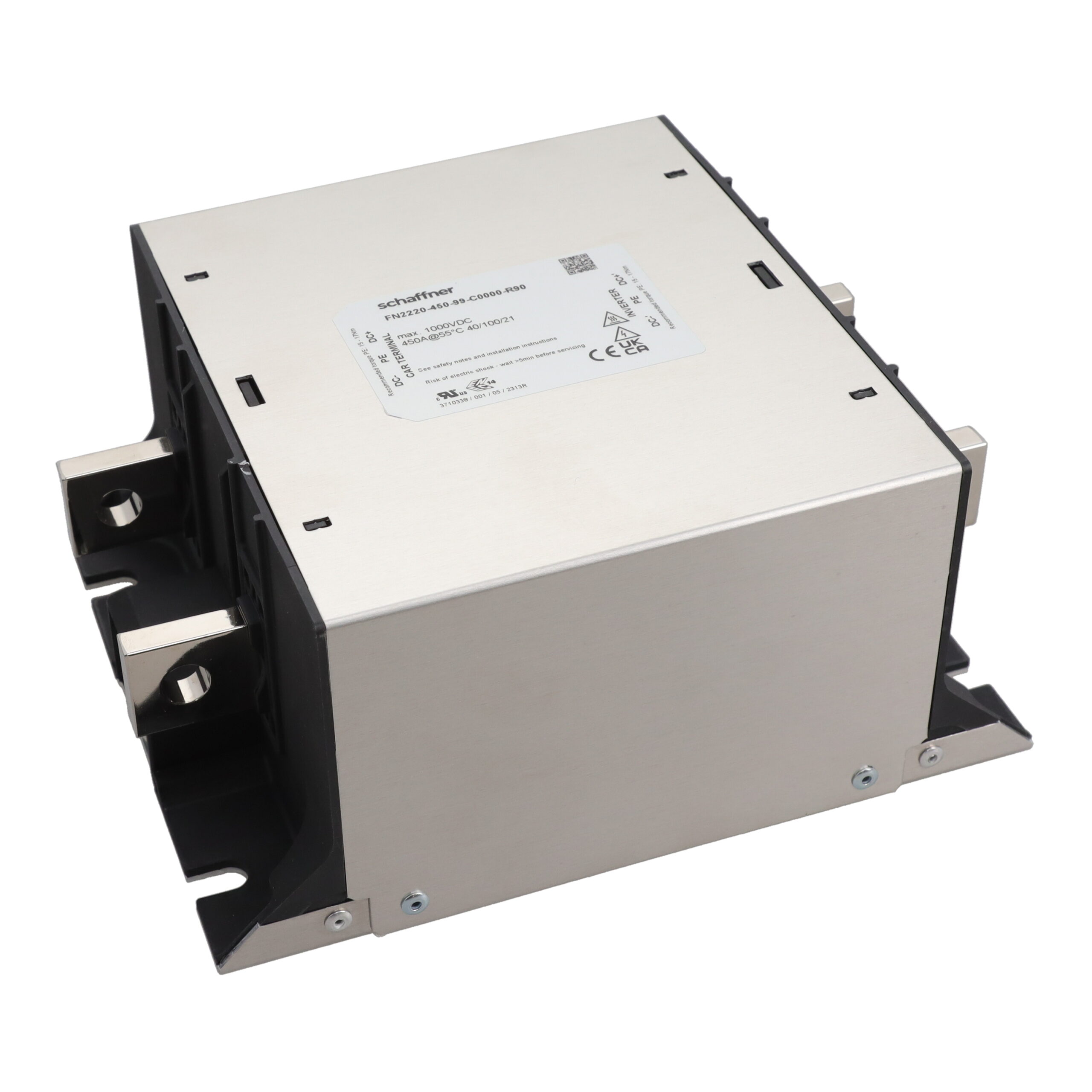

The FN2220-450-99-C0000-R90 is a two-stage DC EMC/EMI line filter manufactured by TE Connectivity Schaffner. It supports a continuous current of 450 A and operates at a voltage rating of 1 kVDC. The component features busbar input and output connections with threaded post terminals (M10). Designed for high-power applications, it functions within an operating temperature range of -40°C to +100°C. Physical dimensions include a length of 150 mm and a height of 95 mm.

Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• High-current capability up to 450 A
• Busbar interface with M10 threaded posts
• Wide operational temperature range

Applications

• Electric vehicle charging infrastructure
• High-power DC power distribution systems
• Industrial drive applications

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm terminal configuration and mounting style. Ensure the selected variant matches the required current and voltage ratings for the target application. Cross-reference manufacturer documentation for any recent design changes or compliance updates before finalizing procurement orders.

Selection Notes

Select this component when high-current DC filtering is required in compact spaces. Consider the busbar connection method for integration into existing power architectures. Evaluate thermal management requirements given the high current handling capabilities and specified operating temperature limits.

Part Context

This part belongs to the FN2220 series, which focuses on ultra-compact DC-busbar EMC/RFI filters. The series is specifically engineered for demanding power distribution and drive applications, offering robust performance in electric vehicle and industrial sectors.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical parameters and physical dimensions before replacing to ensure system compatibility.
