FN2220-450-99-C2222-R99

$338.03

Description：LINE FLTR 1000VDC 450A CHASS MNT
Series：FN2220
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:d0f704682d8d Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 1000VDC 450A CHASS MNT
Series：FN2220
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：DC
Configuration：Two Stage
Voltage - Rated DC：1000V (1kV)
Voltage - Rated AC：-
Current：450 A
Frequency - Operating：DC
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect, Threaded Post (M10)
Inductance：-

Download product information

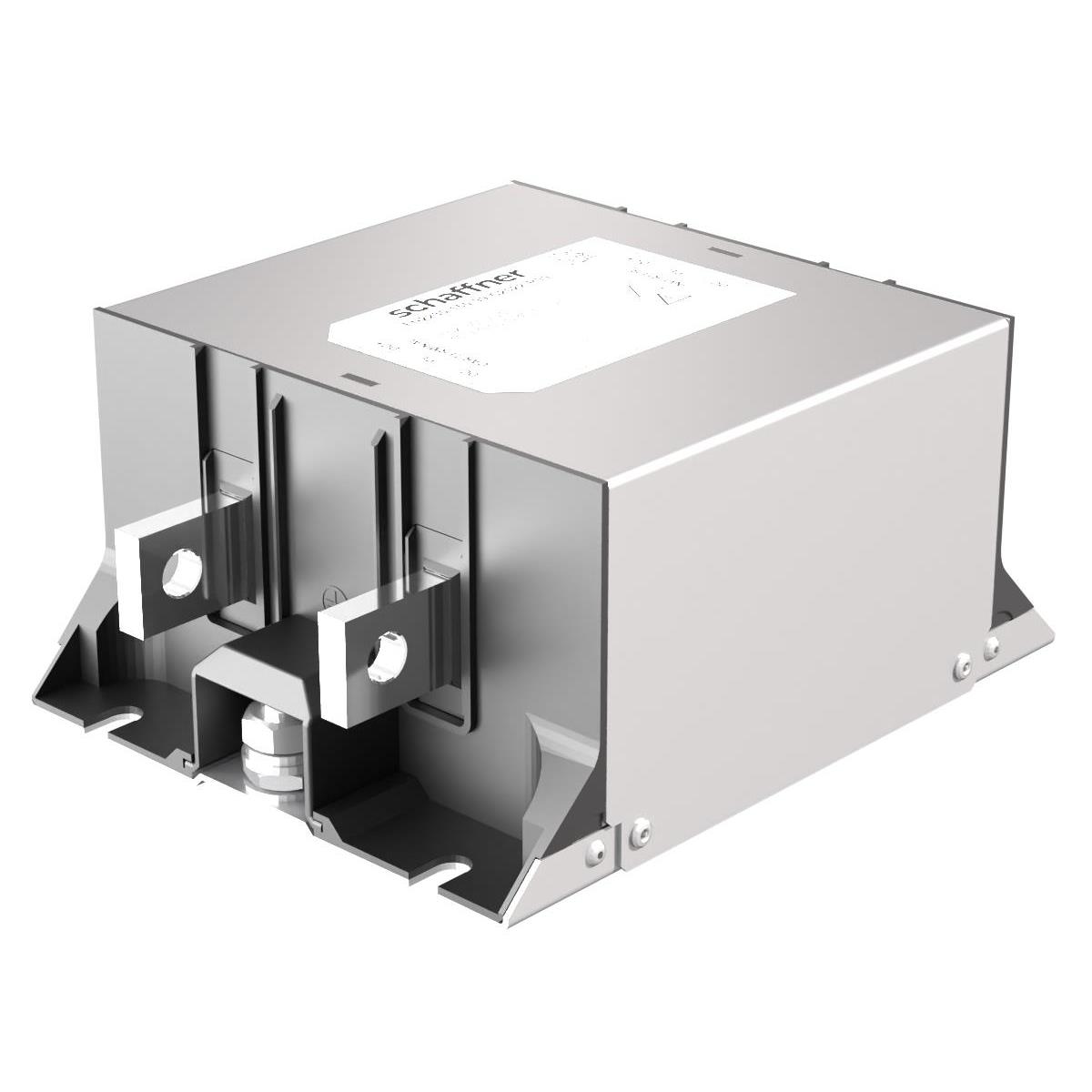

FN2220-450-99-C2222-R99

Overview

The Schaffner FN2220-450-99-C2222-R99 is a power line filter designed for high-voltage direct current applications. It features a rated voltage of 1 kVDC and a current rating of 450 A. The component utilizes busbar termination with threaded post (M10) options, ensuring robust electrical connections. Designed for chassis mounting, it operates within a temperature range of -40°C to +100°C. This filter belongs to the FN222x series, providing essential electromagnetic compatibility in demanding environments.

Feature Summary

Engineered for high-current DC power line filtering applications
Supports busbar termination styles including threaded posts
Constructed for durable chassis mounting configurations

Applications

Electric vehicle DC fast charging systems
High-power DC distribution networks
Industrial EV infrastructure components

Procurement Notes

Verify the specific suffix codes against official TE Connectivity/Schaffner documentation to ensure exact configuration matching. Confirm mechanical dimensions and terminal types prior to integration. Cross-reference datasheets for thermal management requirements and mounting hardware specifications to guarantee system compatibility and safety compliance.

Selection Notes

Select this component for applications requiring high DC voltage isolation and substantial current handling capabilities. Ensure the installation environment supports the specified operating temperature range. Validate that the chassis mounting method aligns with the physical constraints of the enclosure design and thermal dissipation needs.

Part Context

This part belongs to the FN222x series by Schaffner, specialized for high-power DC filtering. It addresses EMC/RFI concerns in electric vehicle and industrial DC systems. The series is characterized by robust construction suitable for harsh operational conditions and high-energy electrical circuits.

Replacement Considerations

Consult official substitution guides for equivalent models within the FN222x family. Verify identical voltage, current, and termination specifications before swapping.
