Product Detailed Parameters
- Description：LINE FLTR 1000VDC 600A CHASS MNT
- Series：FN2220
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：600 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

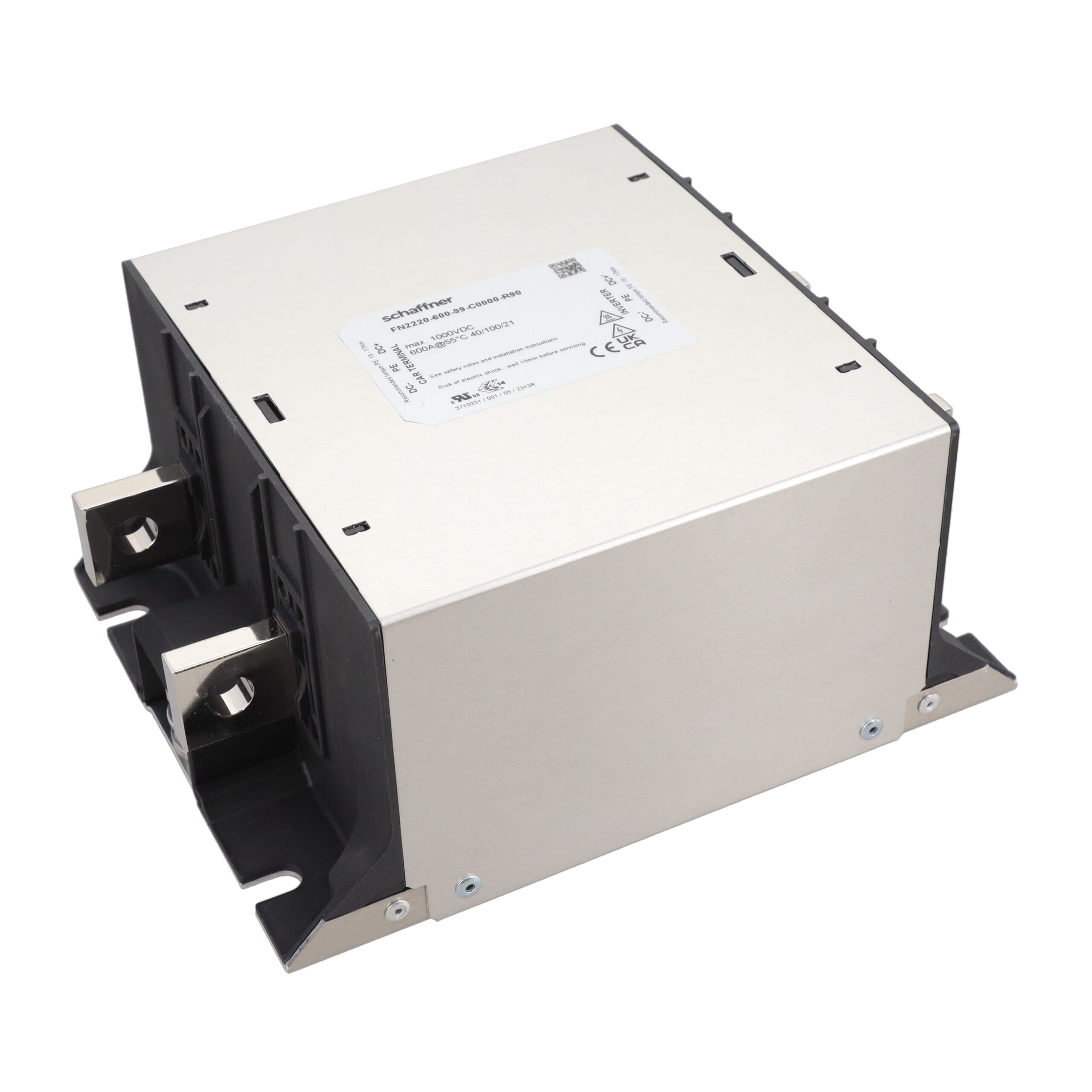

The Schaffner FN2220-600-99-C0000-R90 is a high-current DC EMC/EMI line filter rated for 600 A and 500 V DC. Designed for demanding power distribution and drive applications, it features a two-stage configuration to ensure effective noise suppression. The unit utilizes quick connect and threaded post (M10) termination styles for secure electrical connections. It supports chassis mounting and operates within a temperature range of -40°C to 100°C.
Feature Summary
- Engineered for high-current DC power conditioning in demanding environments
- Two-stage filtering configuration for enhanced noise suppression
- Robust construction suitable for general-purpose industrial applications
Applications
- High-current DC power distribution systems
- Industrial drive applications
- EV charging infrastructure components
Procurement Notes
Verify the specific termination requirements, including M10 threaded posts and quick connect compatibility, against your system design. Confirm that the 600 A current rating and 500 V DC voltage specifications align with your operational parameters. Ensure chassis mounting provisions are available and that the operating temperature range meets environmental conditions.
Selection Notes
Select this component when high-current DC filtering is required for robust noise reduction. The two-stage design offers superior performance compared to single-stage alternatives. Consider the physical dimensions and mounting style to ensure integration into existing chassis layouts without modification.
Part Context
This model belongs to the FN2220 series, which focuses on ultra-compact DC-busbar EMC/RFI filters. The series is specifically engineered for EV charging applications and other high-power DC scenarios requiring compact form factors and high reliability under extreme electrical loads.
Replacement Considerations
The FN2230-600-99-C0000-R90 is a related model within the same product family. Verify if the specific internal circuitry or terminal configuration differences between the FN2220 and FN2230 series impact your specific application requirements before substitution.
