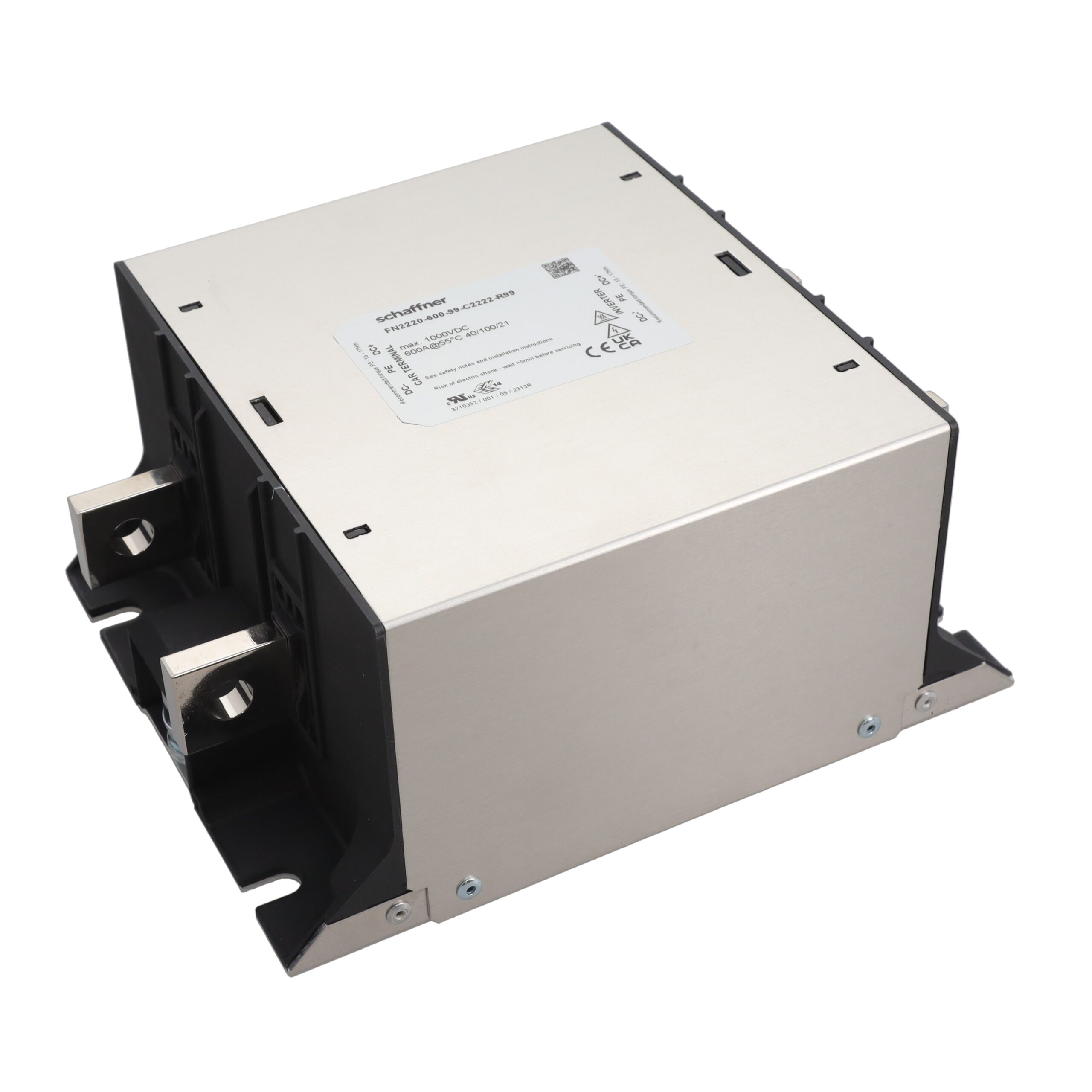

FN2220-600-99-C2222-R99

$388.28

Description：LINE FLTR 1000VDC 600A CHASS MNT
Series：FN2220
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:bbc40dd3d8f4 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 1000VDC 600A CHASS MNT
Series：FN2220
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：DC
Configuration：Two Stage
Voltage - Rated DC：1000V (1kV)
Voltage - Rated AC：-
Current：600 A
Frequency - Operating：DC
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect, Threaded Post (M10)
Inductance：-

Download product information

FN2220-600-99-C2222-R99

Overview

The FN2220-600-99-C2222-R99 is an ultra-compact DC busbar filter manufactured by Schaffner EMC Inc. It features a current rating of 600 A and an operating voltage of 1000 VDC. The component utilizes busbar termination types for both input and output connections, designed specifically for high-power direct current applications.

Feature Summary

Ultra-compact design optimized for space-constrained installations
Capable of supporting high-power fast charging operations

Applications

Electric vehicle (EV) fast charging systems
High-power DC power conditioning

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm compliance requirements such as RoHS status with the supplier. Check for any specific handling instructions related to high-current busbar connections before procurement.

Selection Notes

Select this component when a 600 A current rating and 1000 VDC operating voltage are required. Ensure the application supports busbar terminations for both input and output sides. Consider the ultra-compact form factor if spatial constraints are a primary design driver for the power system.

Part Context

This model belongs to the FN2220 series, which is engineered for electric vehicle infrastructure. The series addresses the need for efficient electromagnetic interference suppression in high-power direct current environments, enabling significant power transfer capabilities within a single filter unit.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Consult the manufacturer's cross-reference tools or technical support for verified alternatives that match the 600 A and 1000 VDC specifications.
