Product Detailed Parameters
- Description：LINE FLTR 500VDC 150A CHASS MNT
- Series：FN2230
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

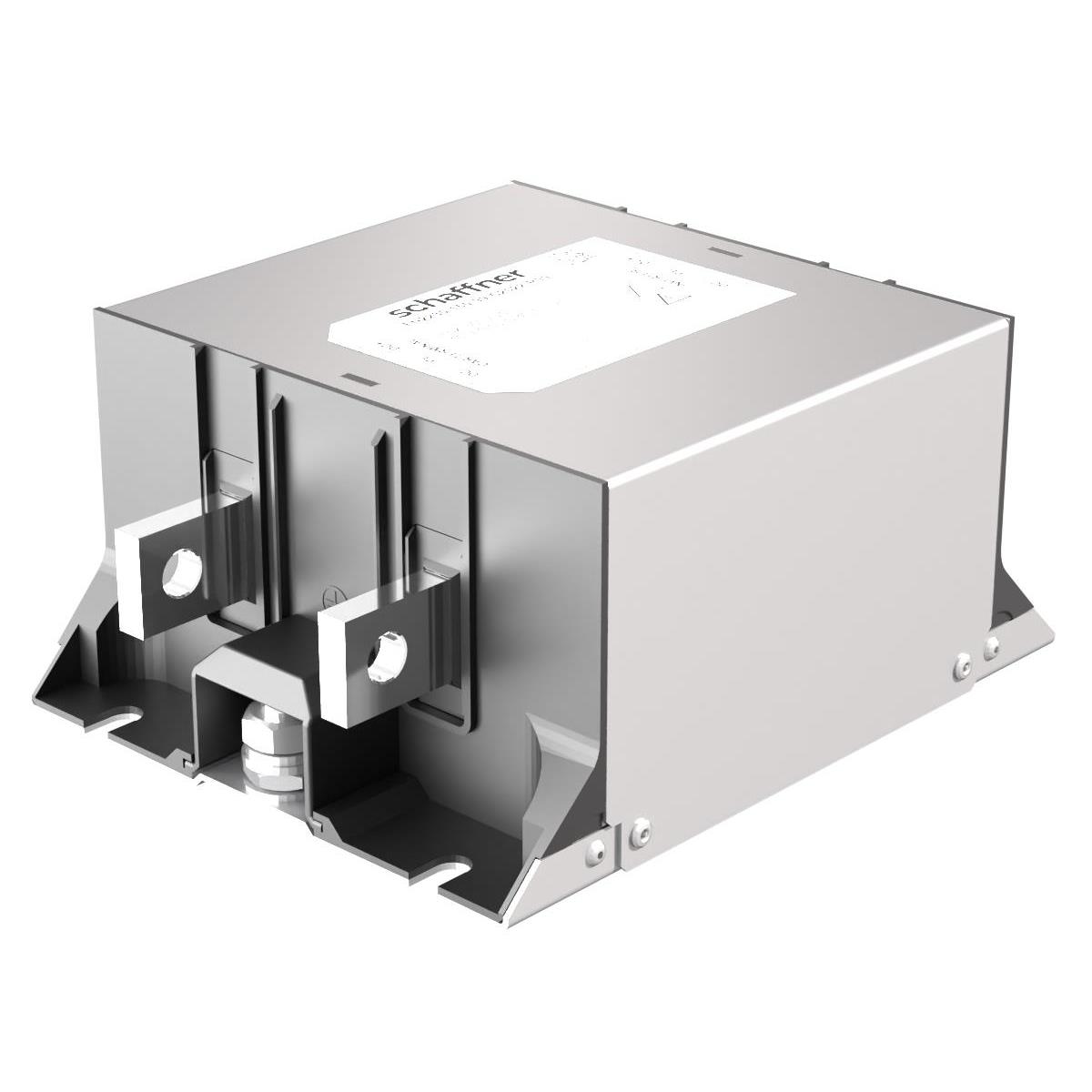

The Schaffner FN2230-150-99-C2022-R99 is a DC busbar filter designed for electric vehicle applications. It operates at 500VDC with a rated current of 150A. The unit features a compact housing and chassis mounting configuration. Terminal connections utilize Faston interfaces. Standard capacitance values are specified as 150nF and 330nF. The component supports fast charging infrastructure requirements within EV systems.
Feature Summary
- Designed specifically for electric vehicle DC busbar filtering applications
- Utilizes a compact housing structure to conserve installation space
- Supports high-current direct current operations up to 150 amperes
- Equipped with Faston terminal connections for circuit integration
Applications
- Electric vehicle powertrain systems
- DC fast charging infrastructure equipment
- EV battery management system input stages
Procurement Notes
Verify the specific part number against official Schaffner documentation to confirm compatibility with your system voltage and current requirements. Ensure that the Faston terminal type matches your existing wiring harness specifications. Confirm chassis mounting dimensions align with your enclosure design before procurement.
Selection Notes
Select this component when designing EV DC circuits requiring robust electromagnetic interference suppression. The 150A rating suits medium-power charging stations. Verify thermal management capabilities within the intended enclosure environment. Ensure the 500VDC rating exceeds the maximum system operating voltage with appropriate safety margins.
Part Context
This filter belongs to the FN2230 series, which provides EMC/RFI filtering solutions for electric vehicle applications. The series includes variants with different current ratings such as 300A and 600A. These components are engineered to meet stringent automotive electromagnetic compatibility standards while maintaining a small physical footprint suitable for modern EV architectures.
Replacement Considerations
Consult official Schaffner substitution guides for verified equivalent parts. Cross-reference current ratings and capacitance values carefully. Ensure mechanical mounting interfaces remain compatible during any replacement process.
