Product Detailed Parameters
- Description：LINE FLTR 500VDC 300A CHASS MNT
- Series：FN2230
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

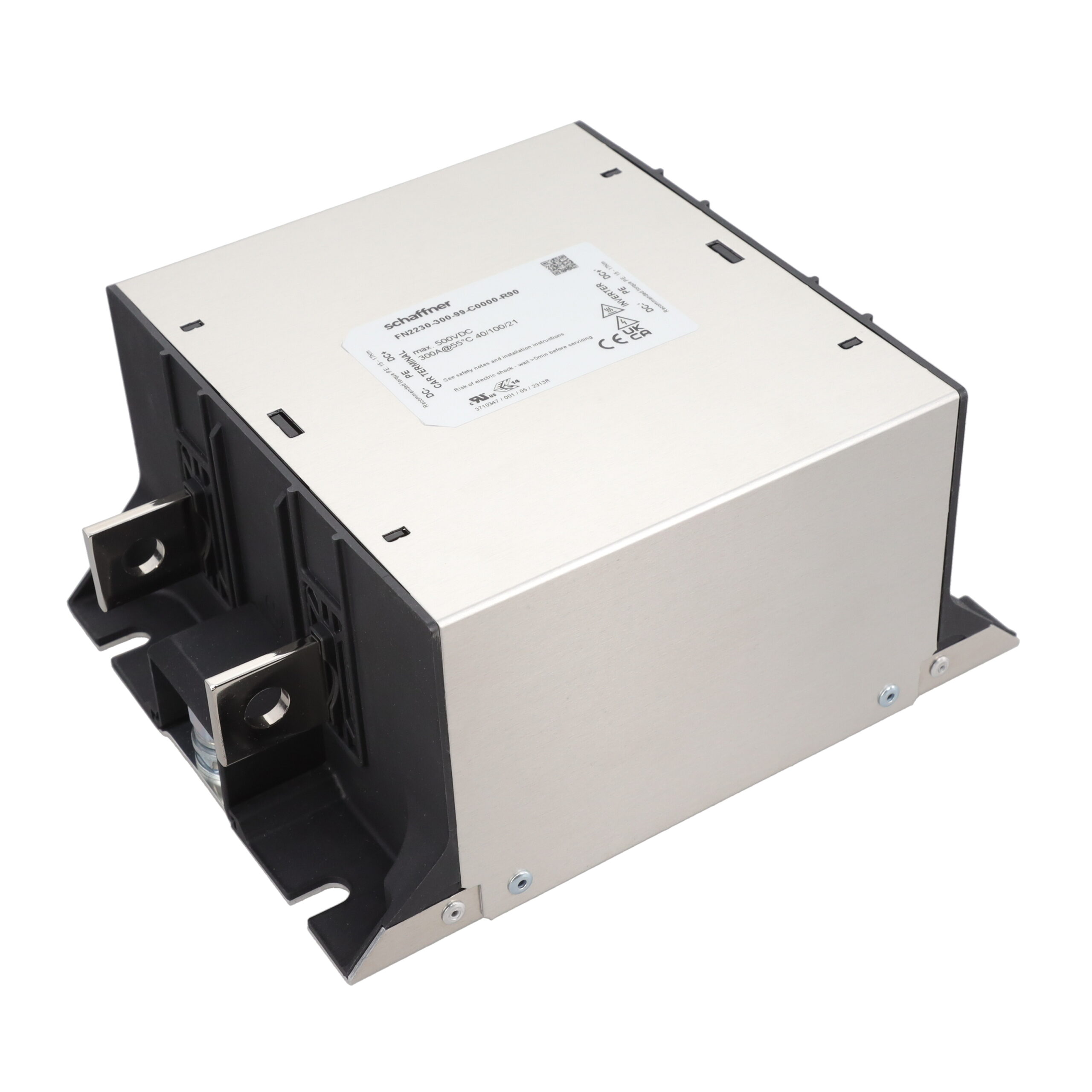

The Schaffner FN2230-300-99-C0000-R90 is an ultra-compact DC-busbar EMC/RFI filter designed for high-power electric vehicle (EV) charging applications. It features a busbar input and busbar output configuration, supporting a rated current of 600 A and a voltage of 500 VDC. This component provides state-of-the-art EMI attenuation suitable for demanding power distribution environments.
Feature Summary
- Ultra-compact design optimized for space-constrained EV charging infrastructure
- Busbar input and output configuration for direct high-current connection
- High attenuation performance for effective EMI suppression in DC systems
Applications
- Electric Vehicle (EV) charging stations
- High-power DC power distribution systems
- Drive applications requiring robust EMI filtering
Procurement Notes
Verify the specific current rating requirements against the model suffix. The part number indicates a 600 A rating; ensure compatibility with system load profiles. Confirm busbar dimensions and mounting interface specifications prior to integration to guarantee mechanical fit and electrical safety in high-power DC environments.
Selection Notes
Select this model for applications requiring 600 A DC filtering with busbar termination. Compare against the FN2220 series for lower current needs or FN2240 for higher voltage ratings. Ensure the selected variant matches the specific 500 VDC operational requirement and physical footprint constraints of the target EV charger design.
Part Context
This component belongs to the Schaffner FN222x/FN223x/FN224x family of ultra-compact DC-busbar filters. These modules are engineered specifically for the stringent electromagnetic interference requirements of modern electric vehicle charging infrastructure, offering integrated filtering solutions that replace discrete components.
Replacement Considerations
Publicly confirmed substitute part numbers were not identified in the provided source material. Verify cross-references through official manufacturer channels before considering alternative sourcing.
