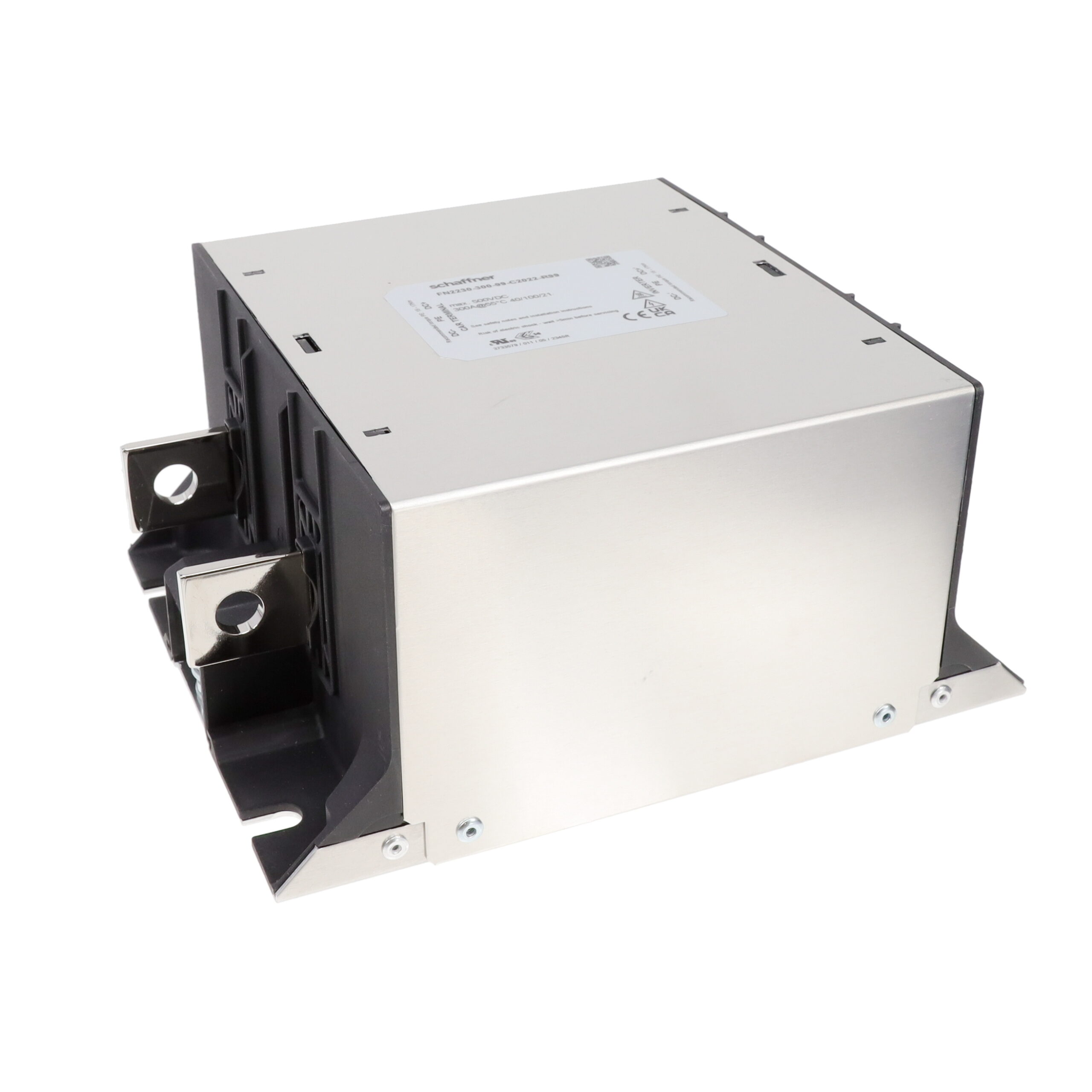

FN2230-300-99-C2022-R99

$271.60

Description：LINE FLTR 500VDC 300A CHASS MNT
Series：FN2230
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:f9c9e0b758b3 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 500VDC 300A CHASS MNT
Series：FN2230
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：DC
Configuration：Two Stage
Voltage - Rated DC：500V
Voltage - Rated AC：-
Current：300 A
Frequency - Operating：DC
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect, Threaded Post (M10)
Inductance：-

Download product information

FN2230-300-99-C2022-R99

Overview

The Schaffner FN2230-300-99-C2022-R99 is a DC busbar filter designed for electric vehicle applications. It supports a maximum voltage of 500VDC and handles a continuous current of 300A. The component features a compact form factor suitable for integration into EV power systems.

Feature Summary

Engineered specifically for electric vehicle DC busbar filtering requirements
Provides high current handling capability up to 300A at 500VDC
Utilizes a compact design optimized for space-constrained automotive environments

Applications

Electric vehicle powertrain systems
EV DC busbar noise suppression
Automotive high-current DC filtering

Procurement Notes

Verify the specific part number against official Schaffner documentation to ensure compatibility with your system's voltage and current requirements. Confirm that the 500VDC rating and 300A capacity align with your application specifications before procurement.

Selection Notes

Select this model when designing electric vehicle systems requiring robust DC busbar filtration. Ensure the 300A current rating and 500VDC voltage limit meet the operational demands of the target application while considering the compact physical footprint.

Part Context

This component belongs to the FN2230 series of EV-DC busbar filters manufactured by Schaffner EMC Inc. The series provides specialized filtering solutions for electric vehicle architectures, addressing electromagnetic interference in high-power DC circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Schaffner documentation or authorized distributors for verified alternatives.
