Product Detailed Parameters
- Description：LINE FLTR 500VDC 450A CHASS MNT
- Series：FN2230
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：500V
- Voltage - Rated AC：-
- Current：450 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

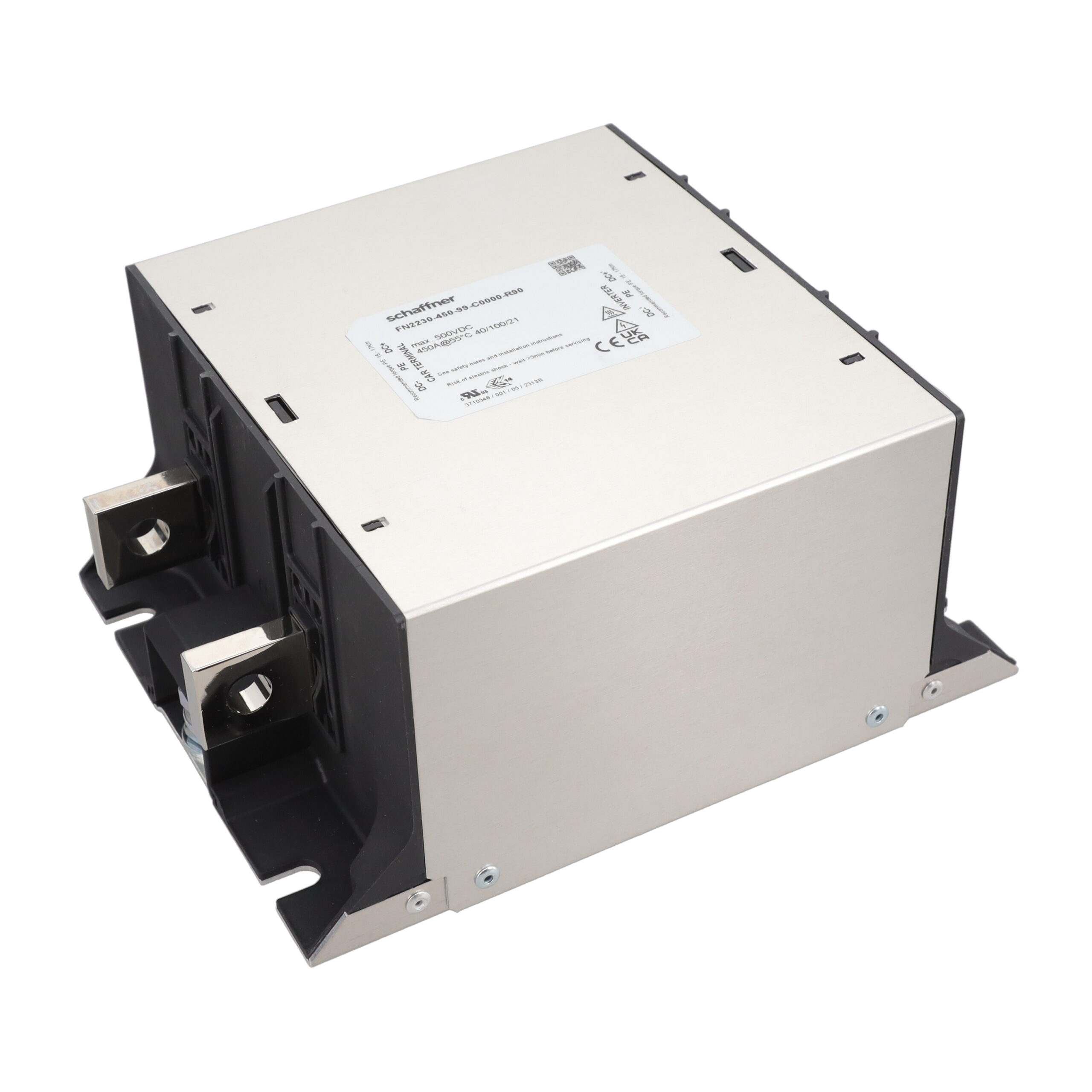

The Schaffner FN2230-450-99-C0000-R90 is a DC-Busbar EMC/RFI filter from the FN22xx series, engineered for high-power EV charging applications. It provides state-of-the-art EMI attenuation to ensure compliance in demanding power distribution and drive systems. Designed as an ultra-compact solution, it integrates seamlessly into electric vehicle infrastructure where space constraints and high current handling are critical requirements.
Feature Summary
- Ultra-compact design optimized for space-constrained EV charging installations
- Specialized construction for high-current DC-busbar environments
- Advanced EMI attenuation capabilities for strict regulatory compliance
Applications
- Electric Vehicle (EV) charging stations
- High-power DC power distribution systems
- Drive applications requiring robust RFI suppression
Procurement Notes
Verify the complete part number including suffixes against official TE Connectivity Schaffner documentation to confirm specific terminal configurations and certification status. Ensure compatibility with existing busbar geometries and thermal management requirements before procurement.
Selection Notes
Select this component when deploying EV charging infrastructure requiring specialized DC filtering. The FN2230 variant is specifically tailored for high-current DC applications, distinguishing it from standard AC line filters. Confirm that the ultra-compact form factor meets the mechanical layout constraints of the target enclosure.
Part Context
This unit belongs to the FN22xx series of DC-Busbar EMC/RFI filters. This family is distinct from general-purpose AC filters, focusing exclusively on the unique electromagnetic interference challenges found in direct current power systems used within modern electric mobility ecosystems.
Replacement Considerations
Official substitutes within the FN222x, FN223x, and FN224x families may be considered if electrical ratings match. Verify that alternative models maintain the required ultra-compact footprint and DC-busbar mounting interface.
