FN2230-450-99-C2022-R99

Overview

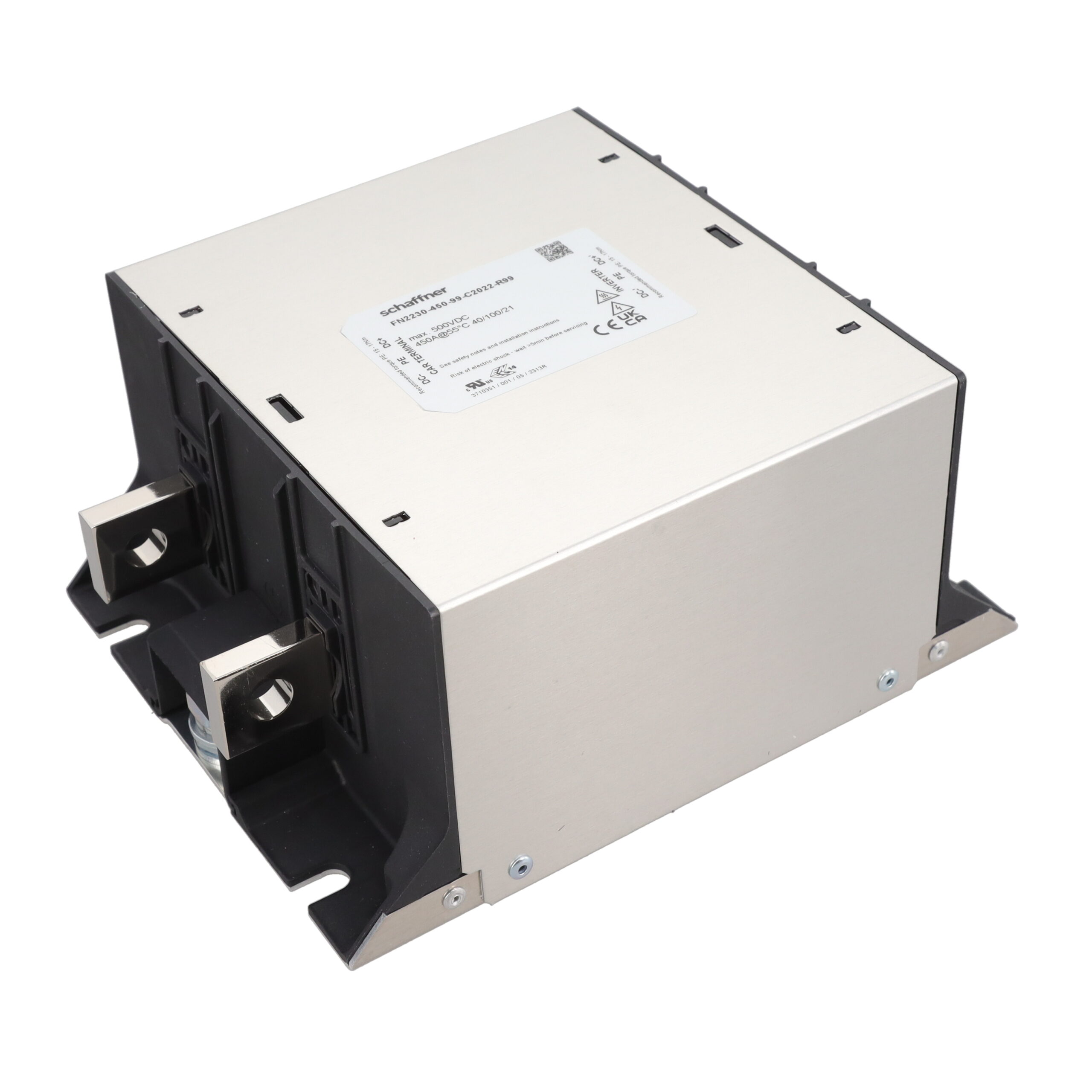

The FN2230-450-99-C2022-R99 is a power line filter manufactured by TE Connectivity / Schaffner, classified under Power Line Filters within the Power Condition subcategory. Designed for electric vehicle DC busbar applications, this component supports a current rating of 450A and operates at 500VDC. It features chassis mounting with quick connect and threaded post (M10) termination styles. The unit functions as an EMC/RFI filter with a capacitance configuration of 150nF/330nF. Operating temperatures range from -40°C to 100°C.

Feature Summary

• Engineered specifically for EV DC busbar filtering applications
• Supports high current capacity of 450A at 500VDC
• Utilizes chassis mount construction with M10 threaded post terminations

Applications

• Electric Vehicle DC Busbar Filtering
• EV Fast Charging Systems
• High Current DC Power Conditioning

Procurement Notes

Verify the specific manufacturer designation, as sources list both TE Connectivity and Schaffner EMC Inc. Confirm the exact capacitance values and termination compatibility with your PCB or busbar layout. Check current availability status as some distributors indicate restricted supply or new product status. Ensure the operating temperature range meets your system requirements.

Selection Notes

Select this component when designing systems requiring high-current DC filtering for electric vehicles. The 450A rating and 500VDC specification are critical constraints. Verify that the M10 threaded post termination style matches your assembly hardware. Consider the -40°C to 100°C operating range for environmental suitability in automotive enclosures.

Part Context

This part belongs to the FN2230 series, which includes variants like FN2230-300-99-C2022-R99 rated for 300A. These filters are compact housing units designed for EV applications. The model number indicates specific electrical ratings and termination configurations distinct from other series like FN2220 or FN2240.

Replacement Considerations

FN2230-300-99-C2022-R99 is a related variant with a lower 300A current rating. Substitution requires verifying if the reduced current capacity meets system demands. No direct cross-model substitutes are confirmed in public data.
