FN2230-600-99-C0000-R90

Overview

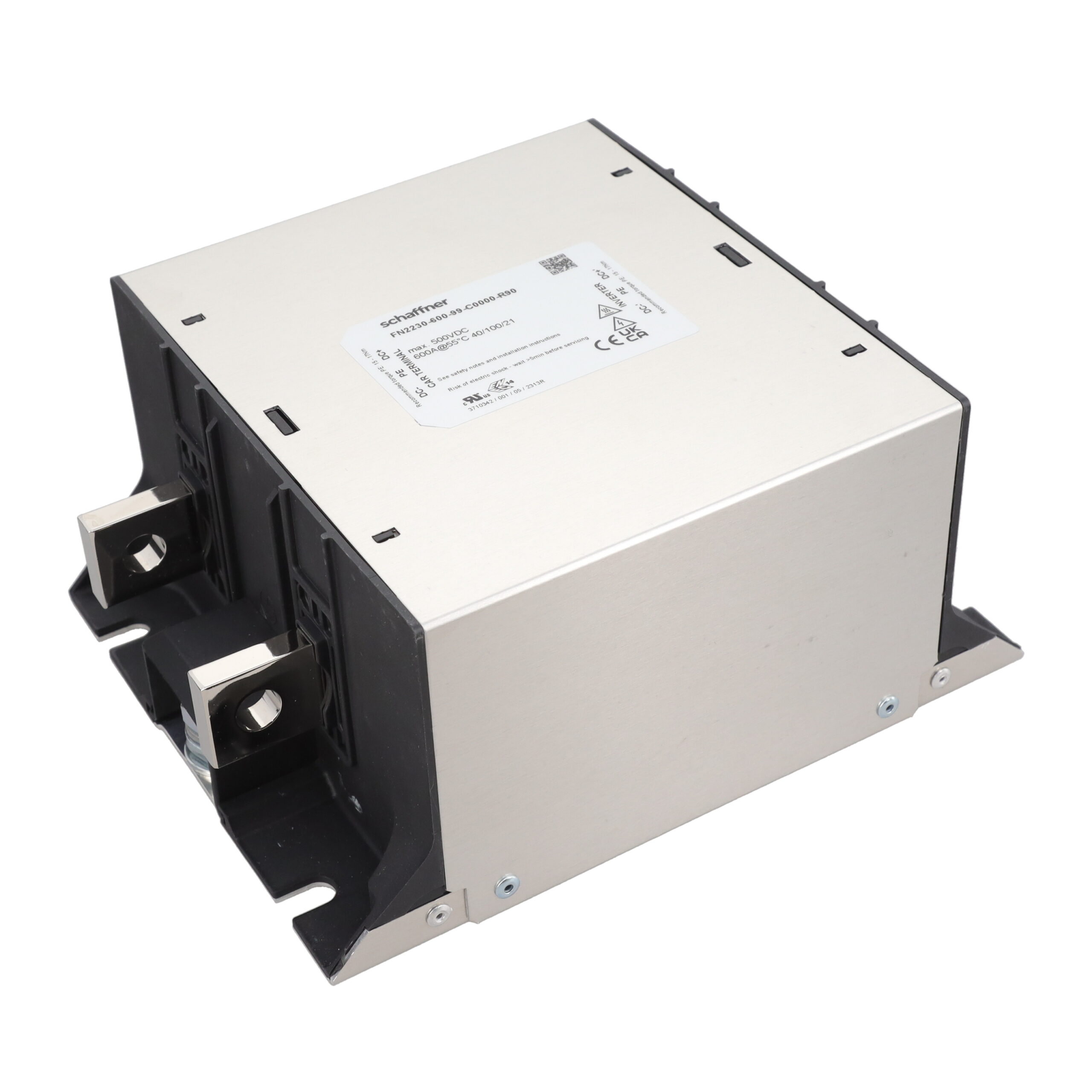

The Schaffner FN2230-600-99-C0000-R90 is a DC EMC/EMI line filter designed for high-power applications. It features a two-stage configuration with quick connect and threaded post (M10) termination styles. The component supports a current rating of 600 A and operates at a voltage of 500V DC.

Feature Summary

• Engineered for state-of-the-art EMI attenuation in demanding power environments
• Utilizes a two-stage filtering architecture for enhanced noise suppression
• Designed specifically to fit within high-power electric vehicle charging systems

Applications

• Electric vehicle charging infrastructure
• High-power power distribution systems
• Demanding drive applications

Procurement Notes

Verify the specific termination style requirements, as this model combines quick connect and M10 threaded posts. Confirm that the 600 A current rating and 500V DC voltage specifications align with your system's electrical parameters before integration. Ensure compatibility with the intended chassis or busbar mounting method.

Selection Notes

Select this component when high-current DC filtering is required for EV charging or similar heavy-duty applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the physical dimensions and terminal types to ensure proper integration into the existing power architecture.

Part Context

This part belongs to the FN22x series from Schaffner, which provides specialized EMC/RFI filters for high-power applications. The series is noted for its ability to handle significant currents while maintaining effective noise reduction in electric mobility and industrial power contexts.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
