FN2230-600-99-C2022-R99

Overview

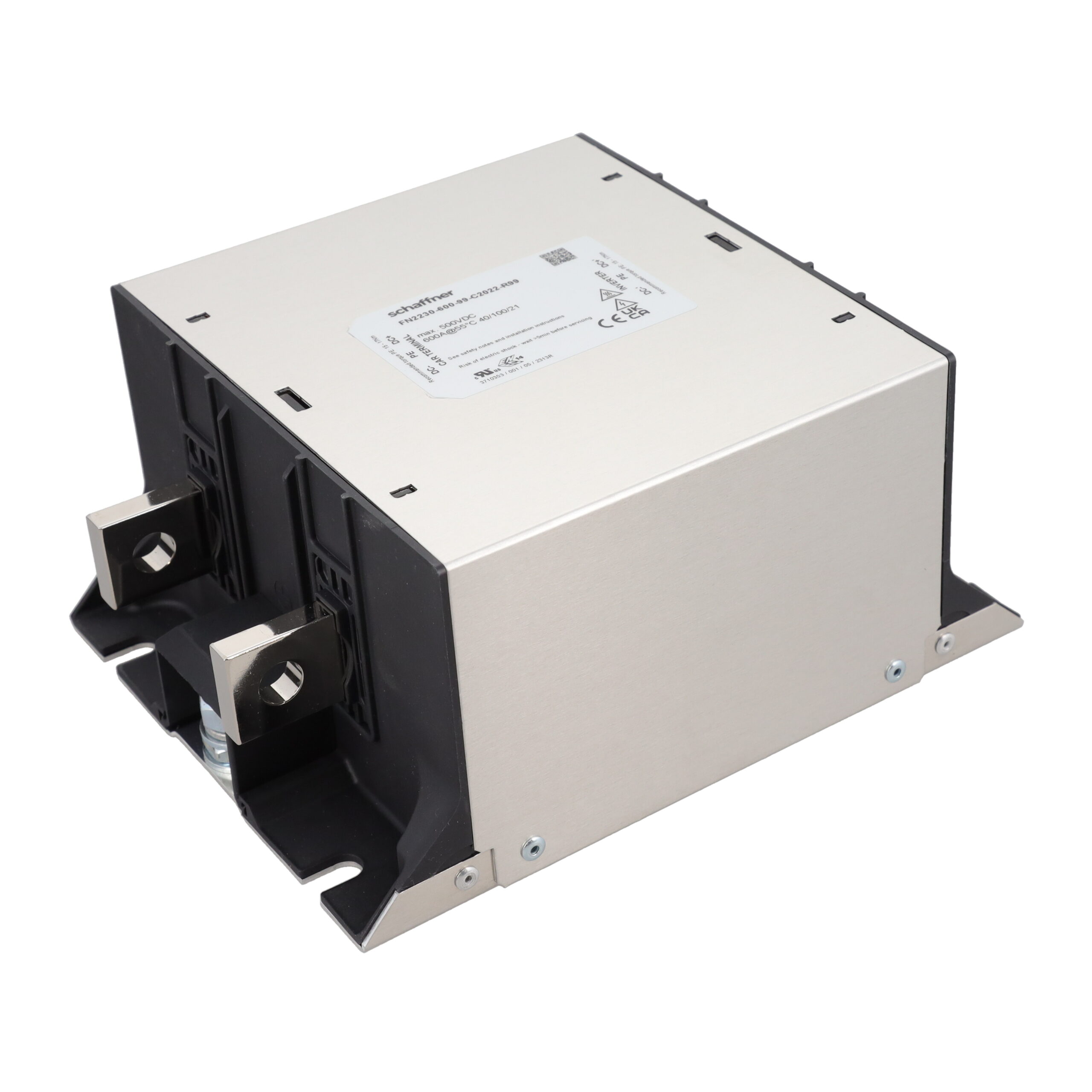

The Schaffner FN2230-600-99-C2022-R99 is a power line filter module designed for electric vehicle DC busbar applications. It supports a nominal voltage of 500VDC and handles a current rating of 600A. The unit features chassis mounting and utilizes specific terminal configurations defined by the C2022 suffix. This component serves as an electromagnetic interference suppression device within high-power direct current systems.

Feature Summary

• Engineered specifically for electric vehicle DC busbar environments
• Provides electromagnetic interference filtering for high-current direct current circuits
• Constructed as a modular unit for chassis installation

Applications

• Electric vehicle DC busbar systems
• High-power direct current distribution networks
• Electromagnetic compatibility modules in EV powertrains

Procurement Notes

Verify the exact electrical ratings and mechanical dimensions against the official manufacturer datasheet before integration. Confirm that the C2022 terminal configuration matches the system interface requirements. Ensure the 500VDC and 600A specifications align with the target application's operational limits to prevent performance degradation or safety hazards.

Selection Notes

Select this component when designing electric vehicle architectures requiring robust DC busbar filtering. The 600A current capacity and 500VDC voltage rating define its suitability for high-power traction and auxiliary systems. Evaluate the chassis mounting style and specific terminal geometry to ensure physical compatibility with the existing enclosure and wiring harness design.

Part Context

This part belongs to the FN2230 series, which includes variants such as the 300A model. The series addresses EMC requirements for electric vehicle power electronics. The specific suffix indicates the terminal type and mounting characteristics distinct from other models in the family.

Replacement Considerations

The FN2230-300-99-C2022-R99 is a related variant within the same series but rated for 300A instead of 600A. Verify if the lower current capacity meets the application needs. No other direct substitutes are confirmed in the provided documentation.
