Product Detailed Parameters
- Description：LINE FLTR 1000VDC 150A CHASS MNT
- Series：FN2240
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

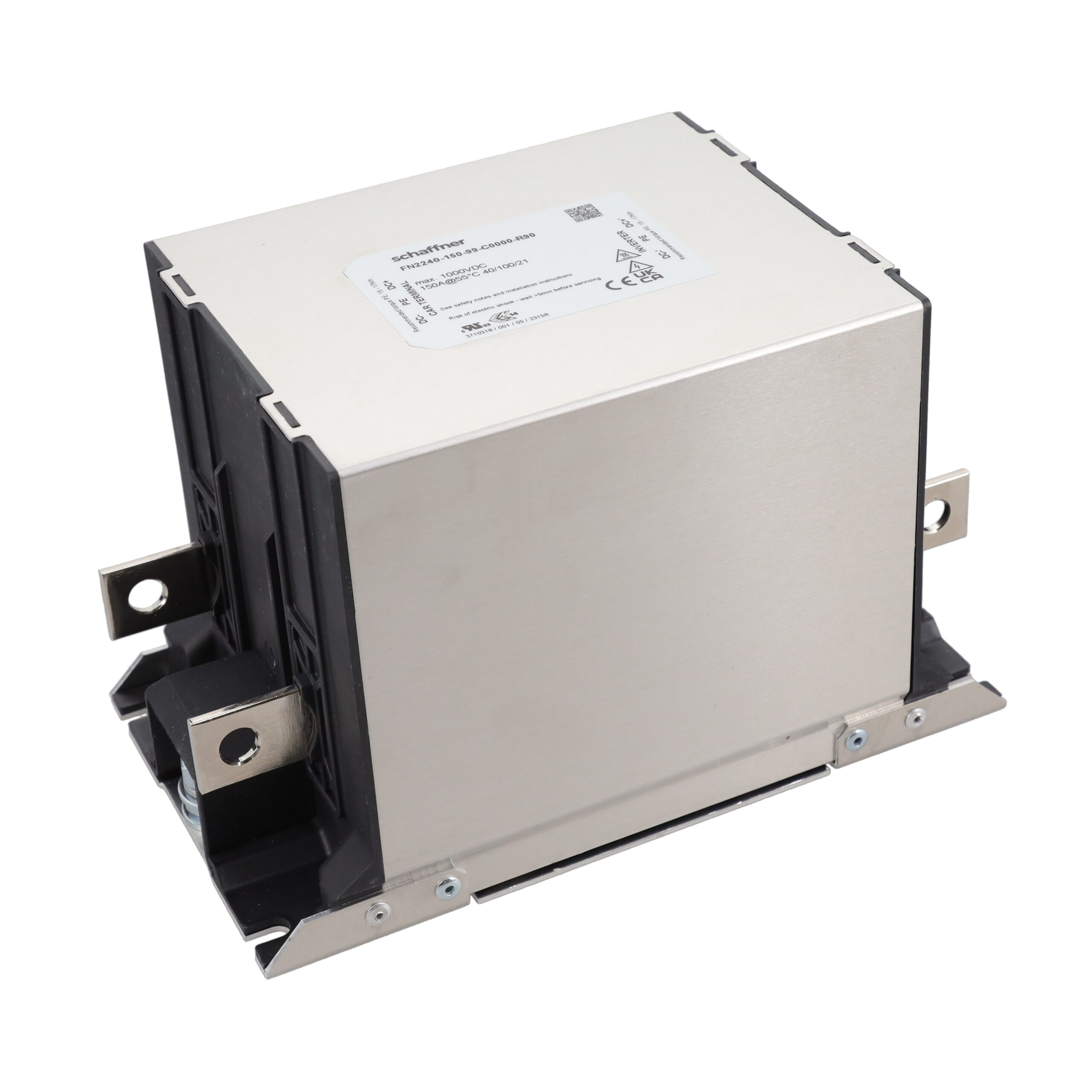

The FN2240-150-99-C0000-R90 is a DC EMC/EMI line filter from the Schaffner Ultra-Compact DC-Busbar series. It features a two-stage configuration designed for high-current applications. The unit supports a rated voltage of 1000 VDC and a current rating of 150 A. Termination is achieved via quick connect terminals with threaded posts (M10). This component is engineered for EV charging infrastructure, providing essential electromagnetic interference suppression in direct current power systems.
Feature Summary
- Ultra-compact housing design optimized for space-constrained installations
- Two-stage filtering architecture for enhanced noise attenuation
- Robust M10 threaded post termination for secure high-current connections
Applications
- Electric vehicle (EV) charging stations
- DC busbar integration in power distribution systems
- High-power DC power supply units
Procurement Notes
Verify the complete part number including suffixes to ensure correct termination style and current rating. Confirm that the 1000 VDC and 150 A ratings align with the specific system requirements. Check for RoHS compliance documentation if required by project specifications. Ensure mounting hardware compatibility with the M10 threaded posts prior to procurement.
Selection Notes
Select this model when a compact form factor is required for high-voltage DC filtering. The 150 A rating suits medium-to-high power EV charging applications. Consider the two-stage design for superior EMI performance compared to single-stage alternatives. Verify physical dimensions against available enclosure space due to the ultra-compact chassis design.
Part Context
This component belongs to the FN2240 series, specifically the Ultra-Compact DC-Busbar line. It is manufactured under the Schaffner brand, now part of TE Connectivity. The series targets the growing electric mobility market, focusing on reliable EMC performance in harsh automotive and charging environments.
Replacement Considerations
Publicly confirmed substitute part numbers are not provided in the source material. Consult official manufacturer cross-reference lists for verified equivalents.
