FN2240-150-99-C2222-R99

Overview

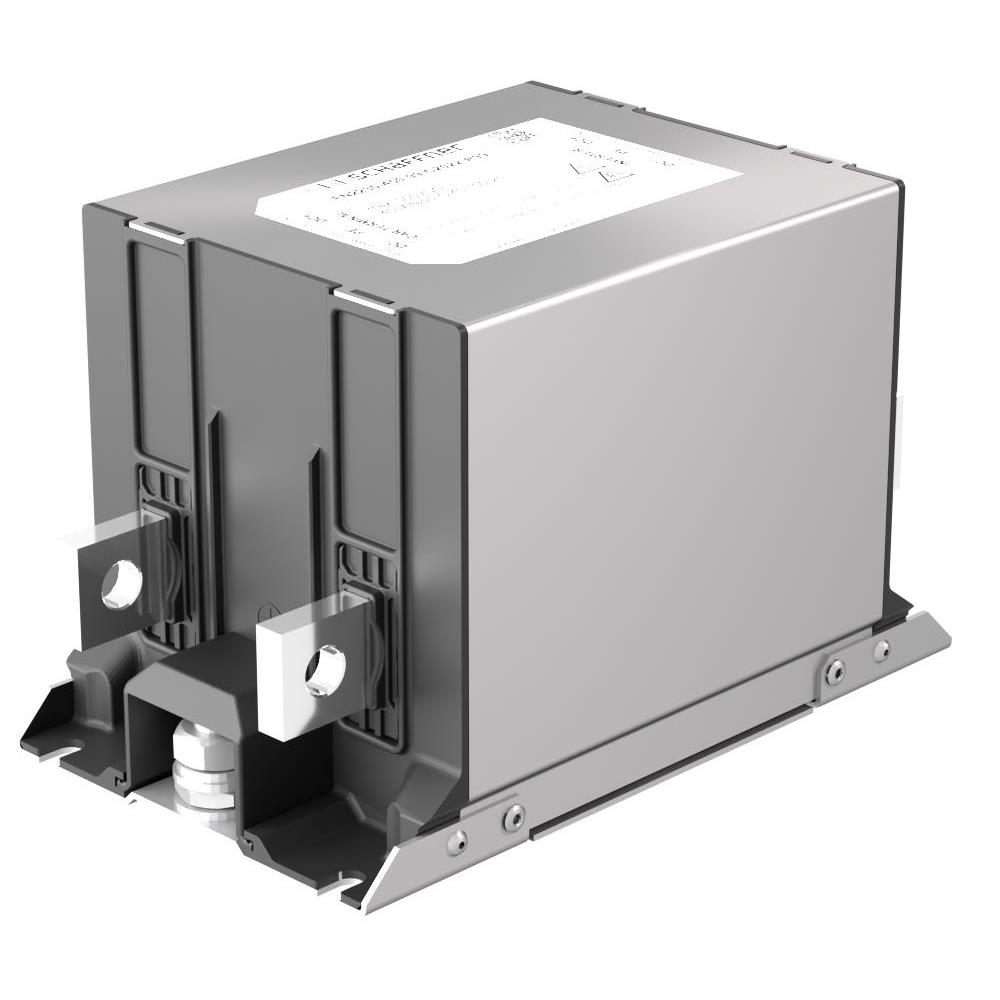

The FN2240-150-99-C2222-R99 is a DC EMC/EMI line filter from the Schaffner FN224X series, designed for ultra-compact applications. It features a rated current of 150 A and a voltage rating of 1000 VDC. The unit utilizes busbar input and output connections with quick-connect threaded posts (M10). This two-stage filter provides high-performance electromagnetic interference suppression suitable for demanding power environments.

Feature Summary

• Designed specifically for EV charging safety standards including IEC/EN 61851-23 and UL 2202
• Ultra-compact form factor utilizing busbar input and output architecture
• Two-stage filtering configuration for enhanced noise attenuation

Applications

• EV charging systems
• DC power conditioning
• Electric vehicle infrastructure

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the 150 A current rating and 1000 VDC voltage specifications align with your operational parameters before procurement. Cross-reference the M10 threaded post connection type with your existing busbar interface to guarantee mechanical fit.

Selection Notes

Select this component when an ultra-compact DC filter is required for high-current applications up to 150 A. The busbar input/output design simplifies integration into tight spaces within electric vehicle charging stations. Consider the two-stage filtering capability if superior EMI suppression is necessary compared to single-stage alternatives in the same series.

Part Context

This model belongs to the Schaffner FN224X series of ultra-compact DC-busbar EMC/RFI filters. These components are engineered to meet stringent EV charging safety standards. The series offers various current ratings, with this specific variant providing 150 A capacity at 1000 VDC, distinguishing it from higher-capacity models like the 450 A or 600 A versions.

Replacement Considerations

Direct substitutes may include other FN224X variants with similar current ratings, such as the FN2240-450-99-C2222-R99, provided the electrical ratings exceed system requirements. Verify mechanical dimensions and terminal types to ensure interchangeability without modifying the host assembly.
