FN2240-300-99-C0000-R90

Overview

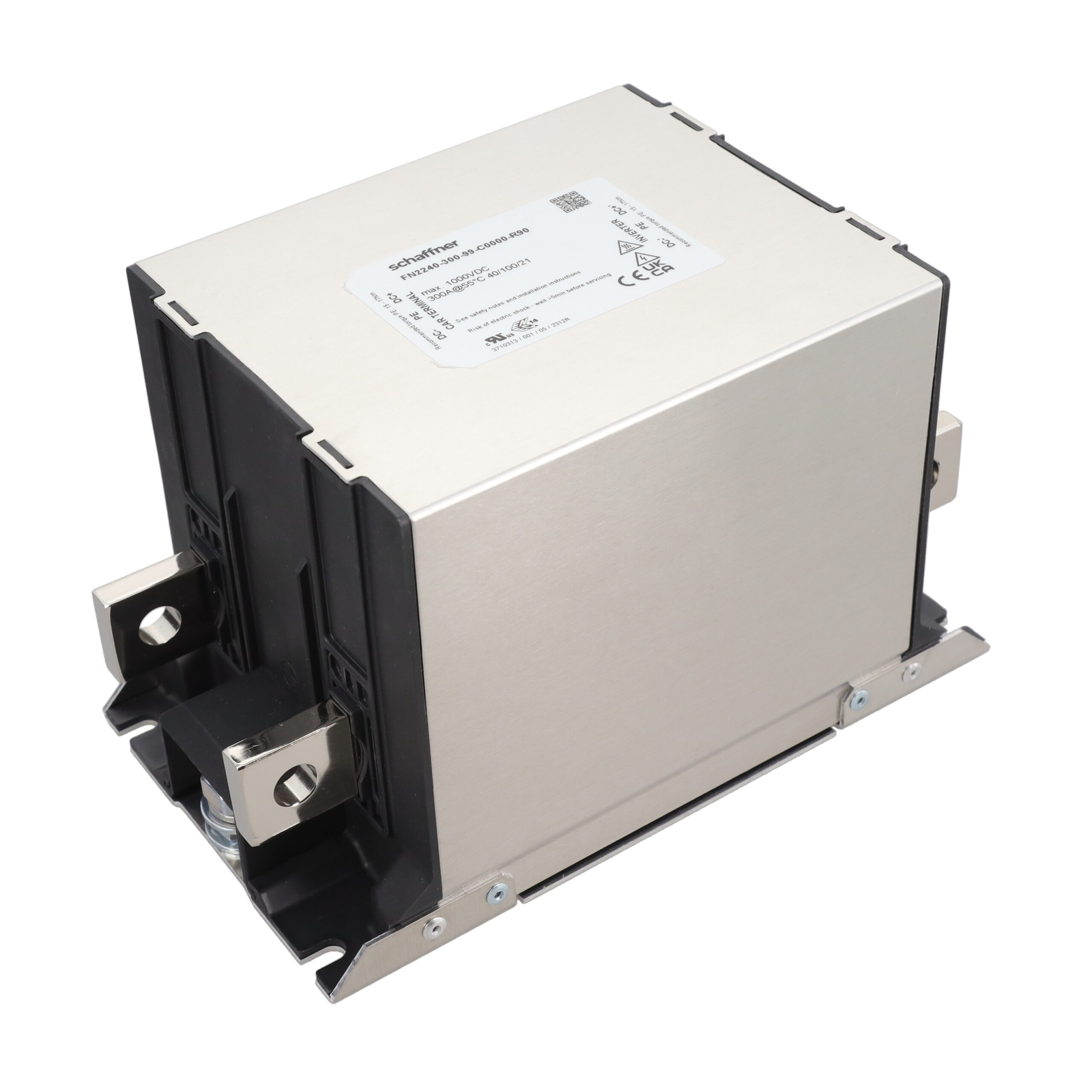

The FN2240-300-99-C0000-R90 is a Schaffner Ultra-Compact DC-Busbar EMC/RFI filter designed for high-power applications. It supports a current rating of 300 A and operates at 1000 VDC. The component features busbar input and busbar output configurations, facilitating direct integration into power distribution systems.

Feature Summary

• Ultra-compact physical design optimized for space-constrained installations
• Engineered specifically for high-current DC power filtering requirements
• Busbar interface configuration for robust electrical connections

Applications

• EV Charging Applications
• High-current DC power distribution
• Drive applications

Procurement Notes

Verify the complete part number including suffixes to ensure correct voltage and current ratings. Confirm busbar dimensions and mounting specifications match the target chassis. Check RoHS compliance status against specific project requirements before finalizing procurement orders.

Selection Notes

Select this model for applications requiring 300 A DC filtering with 1000 VDC capability. Ensure the system layout accommodates the ultra-compact form factor. Verify that busbar termination methods align with the filter's input and output specifications for optimal performance.

Part Context

This component belongs to the FN224X series of power line filters manufactured by TE Connectivity Schaffner. The series includes various models tailored for different current and voltage ratings within the DC filtering domain.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
