Product Detailed Parameters
- Description：LINE FLTR 1000VDC 600A CHASS MNT
- Series：FN2240
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：1000V (1kV)
- Voltage - Rated AC：-
- Current：600 A
- Frequency - Operating：DC
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M10)
- Inductance：-
Download product information
Overview

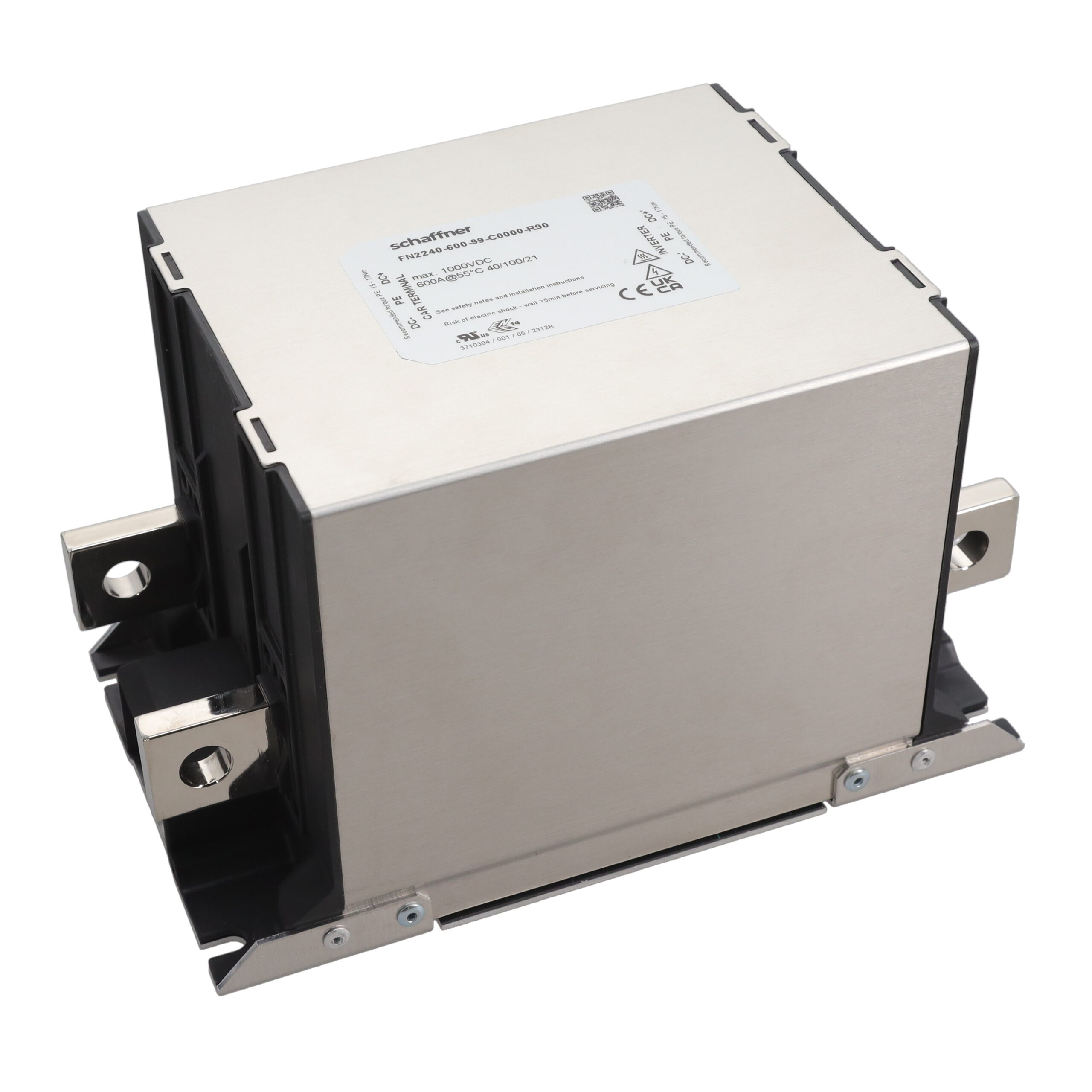

The Schaffner FN2240-600-99-C0000-R90 is a DC EMC/EMI line filter designed for high-power applications. It features a two-stage filtering architecture to ensure effective noise suppression in demanding environments. The unit supports a rated current of 600 A and operates at a maximum voltage of 1000 V DC. It utilizes chassis mounting with threaded posts (M10) for secure installation. The termination type is specified as quick connect, facilitating integration into power distribution systems.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- High current capacity suitable for heavy-duty DC applications
- Robust chassis mounting with M10 threaded posts
Applications
- Electric vehicle charging infrastructure
- Industrial DC power distribution systems
- Renewable energy inverters and converters
Procurement Notes
Verify the specific part number suffix against official TE Connectivity or Schaffner documentation to confirm exact electrical ratings and mechanical dimensions. Ensure compatibility with system voltage and current requirements before procurement. Cross-reference datasheets for thermal management needs under full load conditions.
Selection Notes
Select this component for applications requiring high-current DC filtering with robust mechanical mounting. Evaluate the two-stage design benefits for specific EMI reduction targets. Confirm that the M10 threaded post interface aligns with the enclosure design and grounding strategy.
Part Context
This model belongs to the FN2240 series of DC busbar filters from Schaffner. These components are engineered for high-performance electromagnetic interference suppression in direct current circuits. The series is widely recognized for reliability in industrial and automotive sectors.
Replacement Considerations
Consult official substitution guides for equivalent models within the FN2240 series or compatible Schaffner DC filters. Verify that any replacement matches the 600 A rating, 1000 V DC specification, and M10 mounting configuration.
