FN2240-600-99-C2222-R99

$396.72

Description：LINE FLTR 1000VDC 600A CHASS MNT
Series：FN2240
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:e97ec44f536e Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 1000VDC 600A CHASS MNT
Series：FN2240
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：DC
Configuration：Two Stage
Voltage - Rated DC：1000V (1kV)
Voltage - Rated AC：-
Current：600 A
Frequency - Operating：DC
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect, Threaded Post (M10)
Inductance：-

Download product information

FN2240-600-99-C2222-R99

Overview

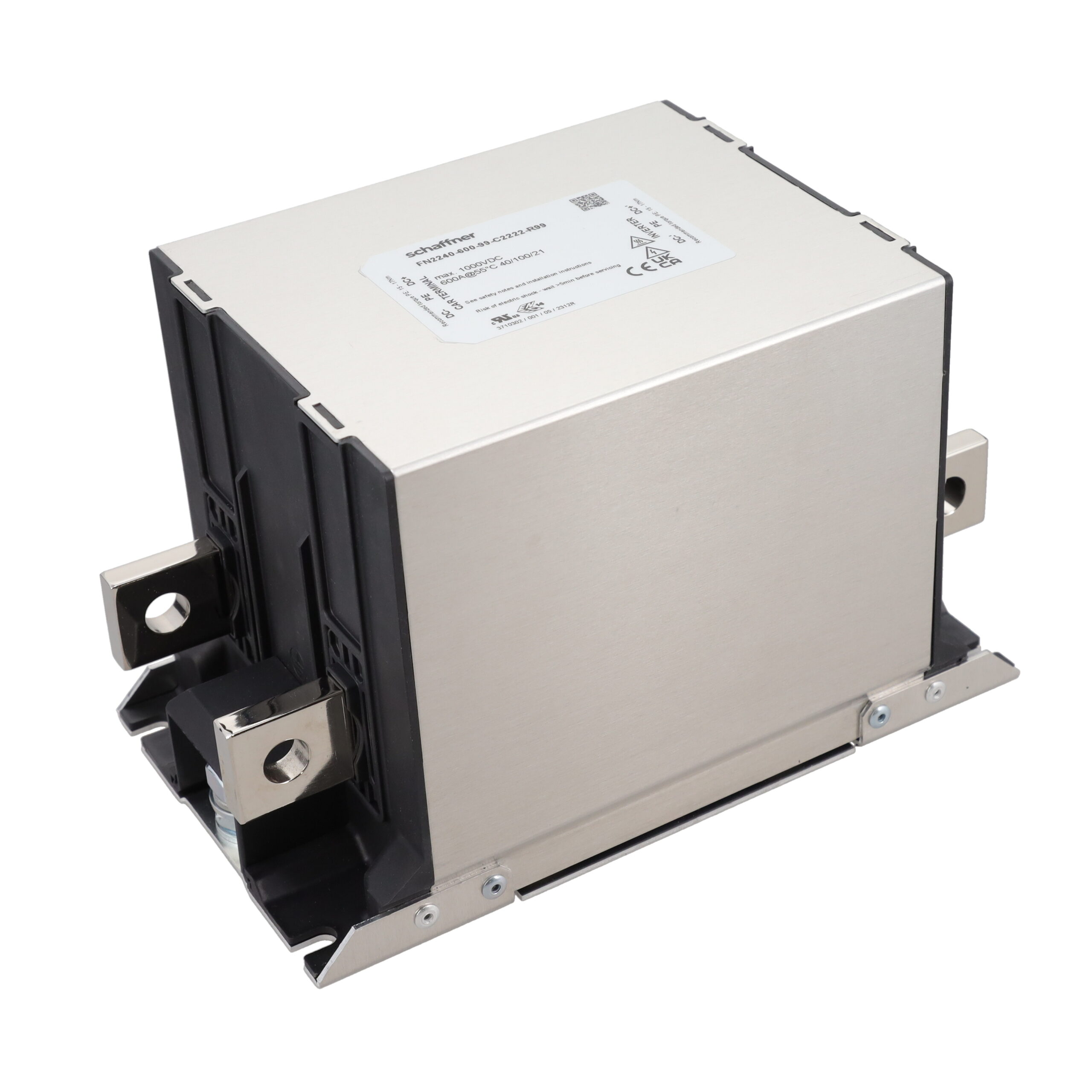

The FN2240-600-99-C2222-R99 is a high-voltage DC EMI filter designed for electric vehicle fast charging applications. It features a slim housing and supports a current rating of 600 A with a voltage rating of 1000 VDC. The component utilizes busbar input and output connections. It operates within a temperature range of -40 to 100 °C and includes capacitance values of 330 nF/330 nF.

Feature Summary

Designed for high-power EV fast charger systems
Utilizes ultra-compact busbar input and output architecture
Engineered for high voltage DC environments

Applications

Electric vehicle fast charging stations
High power DC bus filtering
EV charging infrastructure EMC mitigation

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing busbar interfaces and thermal management requirements for the intended installation environment before procurement.

Selection Notes

Select this component for applications requiring high current handling in compact spaces. Confirm that the 1000 VDC rating and 600 A capacity align with system specifications. Verify mechanical fit for busbar mounting and ensure operating temperature limits are met.

Part Context

This model belongs to the FN224X series, which focuses on ultra-compact DC-busbar EMC filters. The series is specifically engineered to address electromagnetic interference challenges in high-power electric vehicle charging systems while minimizing spatial footprint.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications including voltage, current, and capacitance values to ensure functional equivalence.
