FN2310H-10-06

Overview

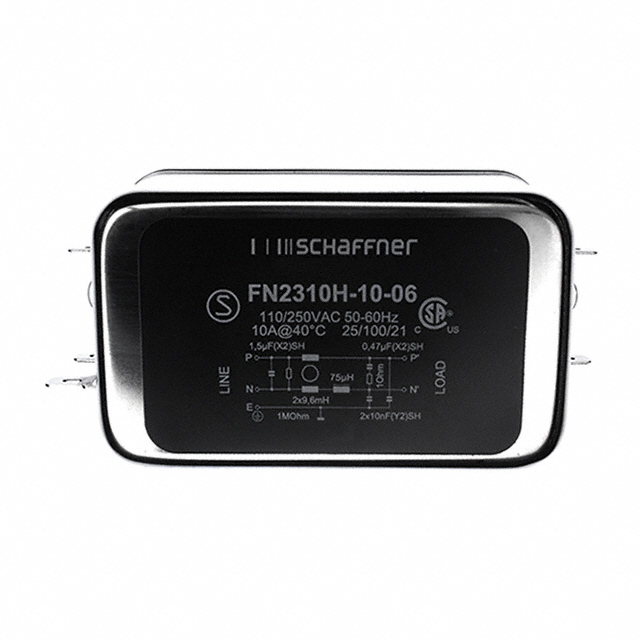

The FN2310H-10-06 is a single-phase EMC/EMI line filter from the Schaffner FN 2310 series, designed for chassis mounting. It features a 10 A current rating and operates at 250 VAC. The unit utilizes faston terminals for connection and includes an integrated fuse. Certified by UL and CSA, it meets safety standards with a UL 94 V-2 flammability rating. The aluminum housing supports operation between -25°C and +85°C.

Feature Summary

• Integrated fuse protection for enhanced circuit safety
• Aluminum enclosure providing durable mechanical shielding
• Faston terminal configuration for straightforward wiring

Applications

• Industrial control systems requiring EMI suppression
• Medical equipment power input stages
• Information technology hardware power entry modules

Procurement Notes

Verify the specific datasheet revision to confirm terminal pitch dimensions and fuse specifications before integration. Ensure panel cutout dimensions align with the chassis mount requirements of the FN 2310 series. Cross-reference certification marks such as UL and CSA against regional regulatory mandates for the final assembly.

Selection Notes

Select this component when a fused, single-phase filter is required for 10 A applications. The chassis mount style necessitates direct panel installation rather than PCB mounting. Verify that the operating temperature range of -25°C to +85°C suits the environmental conditions of the target enclosure.

Part Context

This part belongs to the FN 2310 series of AC power entry modules. The series offers various current ratings and configurations for general-purpose EMI filtering. The FN 2310H variant specifically denotes the high-performance or specific internal topology within this family, standardized for industrial and commercial power inlet applications.

Replacement Considerations

Consult official substitution guides for equivalent current-rated filters. Verify compatibility of mounting holes and terminal types when considering alternative manufacturers.
