Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：FN 2310
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：9.6mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

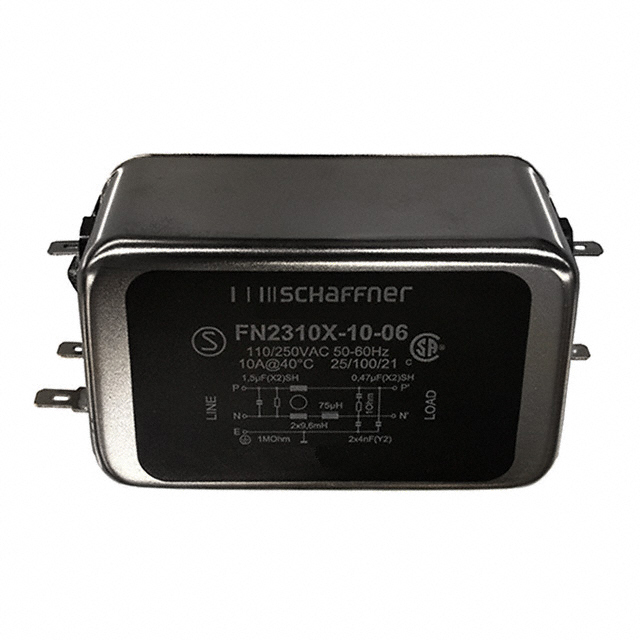

The Schaffner FN2310X-10-06 is a single-phase EMI/RFI line filter designed for chassis mounting. It features an integrated IEC 320-C14 inlet connector and provides commercial-grade noise suppression. The unit is rated for 10A current at 250VAC, operating within a frequency range of DC to 400Hz. It utilizes quick-connect terminals for circuit attachment and meets UL94 V-0 flammability standards. Certifications include CSA, CQC, ENEC, and UR.
Feature Summary
- Integrates an IEC 320-C14 power inlet directly into the filter housing
- Provides single-stage EMI and RFI attenuation for AC power lines
- Supports rapid assembly via quick-connect terminal interfaces
Applications
- Industrial control panels requiring EMC compliance
- Medical equipment power supplies
- Commercial IT hardware systems
- General purpose AC power filtering applications
Procurement Notes
Verify the specific suffix code against the manufacturer's official datasheet to confirm terminal style and voltage ratings. Confirm RoHS compliance status and certification marks required for your target market. Check component availability as electronic components may experience supply fluctuations or end-of-life notifications.
Selection Notes
Select this model when a combined inlet and filter solution is required to save panel space. Ensure the 10A rating matches the system load requirements. Verify that the chassis mounting dimensions fit the enclosure design. Confirm that the quick-connect termination type aligns with the internal wiring harness specifications.
Part Context
This component belongs to the FN2310X series of single-phase filters from Schaffner. These units are engineered for high-performance noise suppression in compact form factors. The series is widely used in applications demanding strict adherence to international electromagnetic compatibility standards for AC power inputs.
Replacement Considerations
Consult the official Schaffner replacement guide for direct equivalents. Cross-reference technical parameters such as current rating, capacitance values, and physical dimensions before substitution.
