FN2310X-3-06

Overview

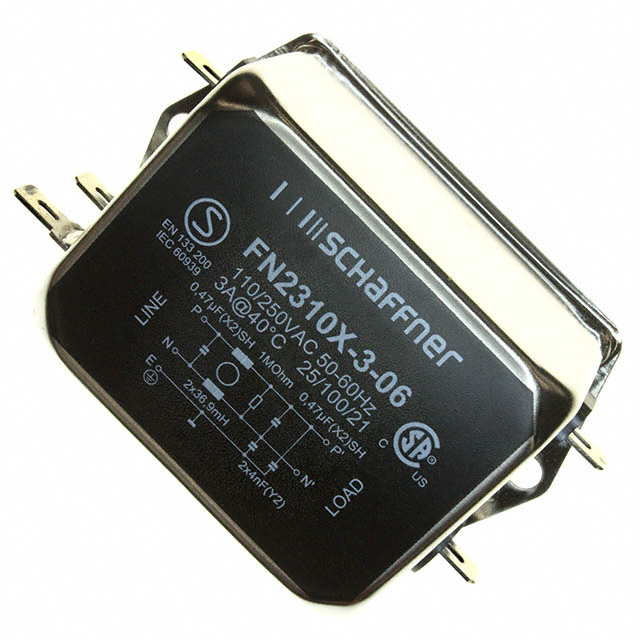

The Schaffner FN2310X-3-06 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports an AC voltage rating of 250VAC with a current capacity of 3A. The component features a single-stage configuration utilizing quick-connect terminals for assembly. It is certified by CSA, SEMKO, and UR, ensuring compliance with international safety standards.

Feature Summary

• Single-stage EMI filtering architecture
• Quick-connect terminal interface
• Chassis mount installation style

Applications

• General purpose equipment
• Safety applications

Procurement Notes

Verify the specific datasheet version for the FN2310X series to confirm exact electrical parameters and mechanical dimensions. Ensure that the quick-connect terminal specifications match the mating connector requirements in the target design. Confirm RoHS compliance status and lead times directly with TE Connectivity Schaffner or authorized distributors.

Selection Notes

Select this component when a single-phase, low-current (3A) solution is required for chassis-mounted EMC suppression. The quick-connect feature facilitates rapid assembly compared to screw-terminal alternatives. Verify that the operating temperature range of -25°C to 100°C meets the environmental conditions of the application.

Part Context

This part belongs to the FN2310 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides standardized solutions for electromagnetic interference suppression in various electronic systems. The 'X' suffix typically denotes specific terminal or housing variations within the broader product family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
